PUR screened cables are well suited as data transfer and connection cables for the machine and motor industries
- Delivery Time:
- 10 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description

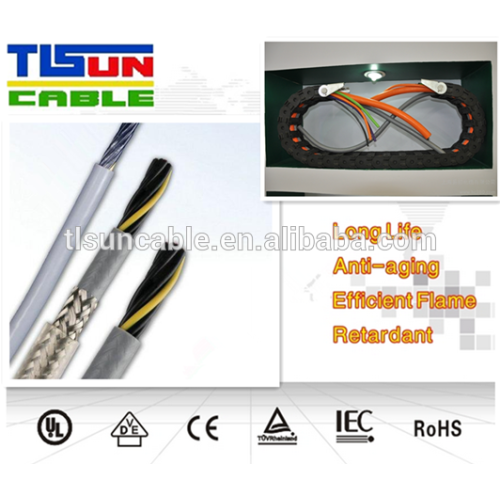

PUR screened cables are well suited as data transfer and connection cables Cable structure Bare copper conductor, fine wire stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5 Special PVC conductor insulation TI2, according to DIN VDE 0281 part 1 Cores numbered or colored according to DIN VDE 0293-308 For 2-conductors cable without green-yellow ground, conductor colors brown, blue black conductors with continuous white numbering and green-yellow ground (up to 7 conductors) or conductors color coded with green-yellow ground (up to 5 conductors) Cores stranded in layers with optimal lay-length PVC-inner jacket guarantees a good insulation cut-back PUR-outer jacket TMPU, to DIN EN 50363-10-2 Colour orange (RAL 2003) with meter marking, change-over in 2011 Application Robust control cable with an outstanding resistance to oil and abrasion. Suitable for use in tool making and machine industries, steel works, on building sites and in the oil and coal industries. The cable can also be used for portable tools etc. To be recommended if the cable comes into contact with chemical agents.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
\
