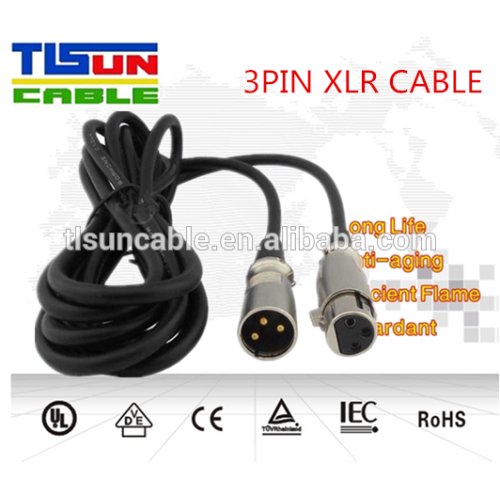

3pin female XLR cable with 128TC shielding Headphone Cable

     3pin female XLR cable   with 128TC shielding Headphone Cable
The XLR connector is a style of electrical connector, primarily found on professional audio, video, and stage lighting equipment. The connectors are circular in design and have between 3 and 7 pins. They are most commonly associated with audio interconnection, but are also used for lighting control, low-voltage power supplies, and other applications.   XLR connectors are available from a number of manufacturers and are covered by an international standard for dimensions, IEC 61076-2-103[1]. They are superficially similar to the older and smaller DIN connector range, but are not physically compatible with them.   XLR connectors are available in male and female versions in both cable and chassis mounting designs, a total of four styles. This is slightly unusual as many other connector designs omit one of the styles (typically a chassis mounting male connector).       The female XLR connectors are designed to first connect pin 1 (the earth pin), before the other pins make contact, when a male XLR connector is inserted. With the ground connection established before the signal lines are connected, the insertion (and removal) of XLR connectors in live equipment is possible without picking up external signals (as it usually happens with, for example, RCA connectors).   The number of pins varies from three to seven. XLR connectors from different manufacturers will intermate, with the exception of Switchcraft 6 pin models, which use a non-standard arrangement for the pins.         Packing & Shipping     Packing length : 40m/roll ,60m/roll ,91.4m/roll 100m/roll , 200m/roll , 300m/roll ; 305m/roll   Inner packing : plastic cover / wooden drum / paper drum ;   Outer packing : 2/4/ 6 roll / carton box ;   Other packing according to customers’ request !

ITEM NAME	MICROPHONE CABLE
CONDUCTOR	CCS/CCA/PURE COPPER/OFC
SPECIFICATION	AS REQUIRED
LENGTH(M)	AS REQUIRED
PACKING	COIL / PLASTIC SPOOL



No. of core	Conductor construction		Braid	Outer Diameter (MM)
	AWG	Inner core No./mm
1	26	10/0.12	48/0.12 64/0.12 96/0.12 or as required	5.8
	24	19/0.12		5.8
	22	26/0.12		5.8
	20	42/0.12		5.8
2	26	10/0.12		6
	24	19/0.12		6
	22	26/0.12		6
	20	42/0.12		6
3	26	10/0.12		6
	24	19/0.12		6
	22	26/0.12		6
	20	42/0.12		6
