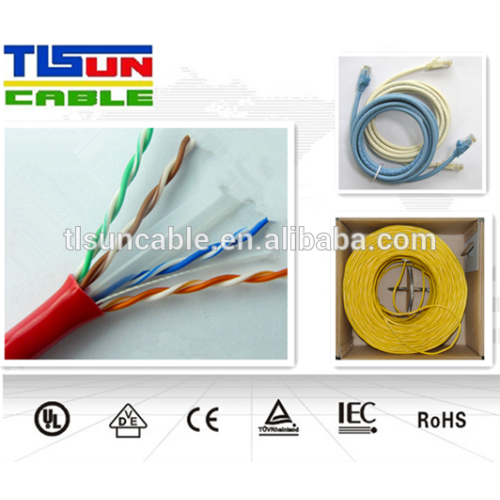

23AWG cat6 cable network CCA/CCAG/CU conductor 305m/roll

23AWG cat6 cable network CCA/CCAG/CU 305m/roll     Product Description 1 Construction   Center Conductor: 0.57±0.005 Bare Copper                                                                            Dielectric: 1.02 ±0.03mm HDPE Shield: No Jacket:  6.3±0.4mm PVC   Nom. Thick: 0.55 ± 0.05mm                                                                                                                             2 Detailed Data Sheet

Product Description:
Reted temperature: 60°C, 75°C,  90°c
Reference Standard: UL444,UL1581
Bare Solid copper conductor
PVC/RoHS/REACH Complied  LSZH Jacket
Complies to TIA/EIA-568-C.2& ISO/IEC 11801
Installation temperatu: -30°c±50°c
Content of Data Sheet
Category	Lan cable CAT6 uTP Cable
test Standard	ISO/IEC11801 TIA-568-C.2 YD/T1019
Conductor	Material	Solid Bare copper
	Nom.O.D.(mm)	0.57	up	0.005
			down	-0.005
Insulation	Material	HDPE
	Diameter	1.09±0.03mm
Sheath	Thickness	0.60±0.05mm
	External O.D.	7.4±0.4mm
	Material	LSZH/PVC/ROSH
	Color	According to requires
Printing	Letter Height	3.0 ± 0.3mm
	Color	Black
	Print error&Space	≤±0.5%,1m
Core Color	1 White-Blue/Blue		2 White-Orange/Orange
	3 White-Green/Green		4 White-Brown/Brown
Packing	Wooden Tray&Carton
Carton Dimension	40.5cm×40.5cm×21cm
Packing Length	305 ± 1.5m
Rip-cord	YES
Shath Physical Propertiese	Before Aging Tensile                           Stength(Mpa)≥10.0                          Elongation(%)≥125
	Aging Period(°c×hrs) 100°c×24h×7d
	After Aging Tensile Stength(Mpa)≥8.0
	Elongation(%)≥100
	Cold Bend(-20± 2°c× 4h 8×Cable O.D.
Electrical Characteristics(20°C)	1.0-100.0MHz Impedance 100±15 ohm
	Delay Shew(ns/100m) ≤45
	NVP                              69%
	Capacitance(nF/100m)max: 5.6
	DC Resistance(Ω/100m)max:9.5
	DC Conductor Resistance Unbalance(%)max 5.0

    3 Technical Performance(100m):

Frequency MHz	RL ≥dB	Attenuation ≤dB/100m	NEXT ≥dB/100m	PHASE DELAY≤ ns	ELFEXT ≥dB/100m	PS NEXT ≥dB/100m	PS ELFEXT ≥dB/100m
1	20.0	2.03	74.3	570	67.8	72.3	64.8
4	23.0	3.78	65.3	552	55.7	63.3	52.8
8	24.5	5.32	60.8	546.73	49.7	58.8	46.7
10	25.0	5.95	59.3	545.38	47.8	57.3	44.8
16	25.0	7.55	56.2	543	43.8	54.2	40.7
20	25.0	8.47	54.8	542.05	41.8	52.8	38.8
25	24.3	9.51	53.3	541.2	39.8	51.3	36.8
31.25	23.6	10.67	51.9	540.44	37.9	49.9	34.9
62.5	21.5	15.38	47.7	538.55	31.8	45.4	28.8
100	20.1	19.8	44.3	537.6	27.8	42.3	24.8
200	18.0	28.98	39.8	536.54	21.8	37.8	18.8
250	17.3	32.85	38.3	536.27	19.8	36.3	16.8

    FAQ Q:Why does your cable have so good price? A: Tlsun  is a indeed factory supplier and have our own copper factory to control the cost and quality from the raw material.   Q: What is the maximum length for a Cat5e cable?Q:  A: The maximum length for a Cat5e cable run is 100 meters (328 feet). If longer runs are required, the use of active hardware such as a repeater or switch is necessary.   Q: What is the difference between solid and stranded cable? A: Solid cable is a 4-pair cable. Within each of the 8 individual wires there is a solid piece of wire covered by a PVC jacket. Because of the solid core of these cables they will be more rigid than stranded cable, but can carry a stronger signal than stranded wire. Solid cable also has the ability to be punched down in to jacks, patch panels, and 66 blocks.   Stranded cable is a 4-pair cable as well. Within each of the 8 individual wires there are multiple tiny stands of smaller gauge wire that are held together by a PVC jacket. Because this cable is made with smaller strands of cable it is more flexible than solid core wire. Stranded Cat5e is typically use for short patch cables. Stranded wire cannot be punched down.   Q: What is shielded cable?  A: Shielded cable is used for increased protection from interference and crosstalk. It is typically used in electrical noisy environments. Common sources of interference are radio towers, high-powered electrical conduit, fluorescent lighting, or any other device emitting electro-magnetic or radio frequency signals.
