25mm2 PV1-F DC Solar Cable, Black Sheath (TUV Approved)

Get Latest Price

Delivery Time:: 10 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

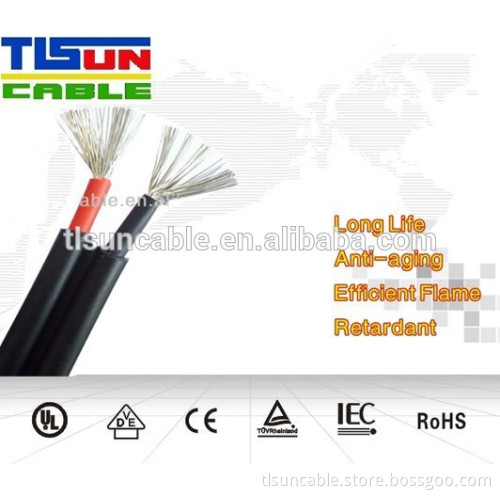

25mm2 PV1-F DC Solar Cable, Black Sheath (TUV Approved) Specifications Photovoltaic Solar cable TUV proved
Tinned Flexible Copper No Halogen PO Insulation&Sheath
Applied to solar panels,UV proof 1.Executive Standard: PV cable( Photovoltaic Solar cable ) refers to original draft made out by PV system cable work team of German Standard Committee(Technical Specification 2PFG1169/08.2007 in Rhein TUV company German). 2.No-haogen PV-Cable Type: PV1-F: Tinned Flexible Copper Wire No Halogen PO Insulation&Sheath Photovoltaic System Cable. 3. Application Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety . 4.Cable Characteristics

MODEL	PV1-F
Conductor	Tinned copper wire,class 5 (as per IEC 60228)
Insulation	No Halogen PO insulation
Sheath	No Halogen PO sheath
rated voltage	AC 0.6/1KV
	DC 1.8KV
Temperature range	-40°C~+90°C,dry/ humidity
Max.working temperature of conductor	120°C
During short circuit	200°C
Standard	EN 2PFG 1169

5.PV1-F Structure Parameter

type	Cross Sectional Area(mm2)	Conductor structure( Strand /mm)	diameter(mm)	insulation thickness(mm)	sheat thickness(mm)	cable diameter(mm)	DC resistance at 20°C(Ω/km)
PV1-F	1.5	48/0.2	1.6	1.0	0.8	5.2	12.2
PV1-F	2.5	77/0.2	2.0	1.0	0.8	5.6	7.56
PV1-F	4	56/0.3	2.6	1.0	0.9	6.4	4.7
PV1-F	6	84/0.3	3.2	1.0	0.9	7.0	3.11
PV1-F	10	77/0.41	4.4	1.0	0.9	8.2	1.84
PV1-F	16	119/0.41	5.5	1.0	1.1	9.7	1.16
PV1-F	25	189/0.41	6.5	1.2	1.2	11.3	0.734
PV1-F	35	244/0.41	7.5	1.2	1.2	12.3	0.529

6.Current Capacity Reference Value (Ambient Temperture:60°C,Max. Conductor Working Temperature:120°C)

Nom.Area(mm2)	Single core in the air(A)	Single core on the equipmnt surface(A)	Next to equipment(A)
1.5	30	29	24
2.5	41	39	33
4	55	52	44
6	70	67	57
10	98	93	79
16	132	125	107
25	176	167	142
35	218	207	176

7.Temperature deviation means conversion factor(as per 60364-5-52)

Ambient Temperature(°C)	Conversion Factor	Ambient Temperature(°C)	Conversion Factor	Ambient Temperature(°C)	Conversion Factor
≤60	1.00	≤80	0.82	≤100	0.58
≤70	0.91	≤90	0.71	≤110	0.41
