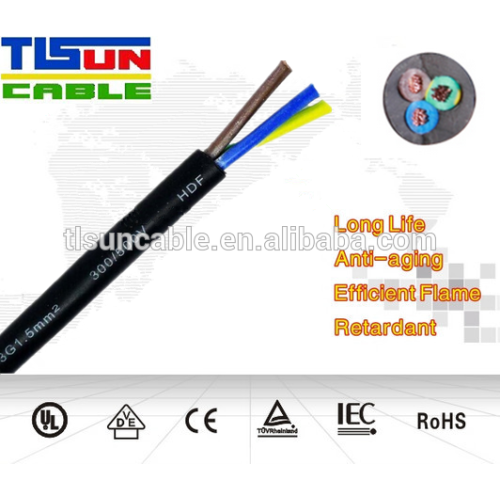

H05VV-F 1.5mm 3G flexible cable

Get Latest Price

Delivery Time:: 10 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

H05VV-F 1.5mm 3G flexible cable Product Description Application about PVC insulated installstion cables H05VV-F H05VV-F 1.5mm2 3G bulk power cord flexible wire for use in Europe and many other countries. This product has 14+ country agency approvals including the Germany VDE. This European bulk flexible portable cable is typically rated up to 16A 250V and one of the more popular style of flexible power cord cable used in Europe. While most people associate this style of harmonized power cable wire with Europe, our certifications include Australia, China, India, Korea and many other countries as well. This H05VV-F style harmonized power cord wire is sold by the foot on 36" or 24" wooden spools. standard: PVC-control cables to DIN VDE 0281 part 5 and IEC 60227-5, HD 21.5 S3 construction: Bare copper, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383 1. PVC conductor insulation TI2 to DIN VDE 0281 part 1 2. Conductors color coded to DIN VDE 0293-308 (7 and more conductor’s number coded), 1x green-yellow grounding included Green-yellow grounding (3 conductors and above) 3. Conductors stranded in layers with optimal lay-length 4. PVC outer jacket in black, white or as per requirement 5. PVC outer jacket TM2 to DIN VDE 0281 part 1

Type	RVV, H03VV-F, H05VV-F
Voltage Rate		300/300V, 300/500V
Cores		2~7 cores
Range of Nominal cross section:		0.50 mm2 ~ 120 mm2
Application	Flexible wiring, for switch control, instrumentation panels and for internal connection.
Standard	IEC 60227, BS6500, VDE0281, GB/T 5023, JB/T8734
Constructions	Conductor: Class 5 fine annealed copper wires Insulation: PVC Sheath: PVC Core color: Brown, Grey, Black, Blue, Orange, Green/Yellow or others on request
Max. Operating Temperature		70°C, can be 90°C,105°C as per requirement
Packing	100 meter/roll or as per requirement
Production Capacity	70 kilometer/ day
MOQ	10000 meters for big size, 5000 meters for middle size, 1000 meters for small size
Delivery time	10~15 working days
Remark	The cable can be of flame retardance, fire resistance and other property

PVC insulated installation cables H03VV-F Specification

Description & No. Conductors x cross-sec. mm2	Jacket Color	Outer Ø (mm)	Copper Weight	Weight	AWG
Description & No. Conductors x cross-sec. mm2	Jacket Color	Outer Ø (mm)	kg/km	kg/km	AWG
H03VV-F 2X0.5	black	4.6-5.9	9.6	40	20
H03VV-F 2X0.5	white	4.6-5.9	9.6	40	20
H03VV-F 2X0.5	other colors	4.6-5.9	9.6	40	20
H03VV-F 3G0.5	black	5.0-6.4	14.4	49	20
H03VV-F 3G0.5	white	5.0-6.4	14.4	49	20
H03VV-F 3G0.5	other colors	5.0-6.4	14.4	49	20
H03VV-F 4G0.5	black	5.4-7.0	19.2	61	20
H03VV-F 4G0.5	white	5.4-7.0	19.2	61	20
H03VV-F 4G0.5	other colors	5.4-7.0	19.2	61	20
HO3 VV-F 2X0.75	black	4.9-6.3	14.4	49	18
H03 VV-F 2X0.75	white	4.9-6.3	14.4	49	18
H03 VV-F 2X0.75	other colors	4.9-6.3	14.4	49	18
HO3 VV-F 3G0.75	black	5.2-6.7	21.6	59	18
H03 VV-F 3G0.75	white	5.2-6.7	21.6	59	18
H03 VV-F 3G0.75	other colors	5.2-6.7	21.6	59	18
H03 VV-F 4G0.75	black	5.7-7.3	29	72	18
H03 VV-F 4G0.75	white	5.7-7.3	29	72	18
H03 VV-F 4G0.75	other colors	5.7-7.3	29	72	18
(H)03 VV-F 5G0.75	black	6.4-8.2	36	87	18
(H)03 VV-F 5G0.75	white	6.4-8.2	36	87	18
(H)03 VV-F 5G0.75	other colors	6.4-8.2	36	87	18
(H)03 VV-F 6G0.75	black	7.1-9.0	43	98	18
(H)03 VV-F 6G0.75	white	7.1-9.0	43	98	18
(H)03 VV-F 6G0.75	other colors	7.1-9.0	43	98	18
(A)O 3 VV-F 7G0.75	black	7.1-9.0	50	108	18
(A)O 3 VV-F 7G0.75	white	7.1-9.0	50	108	18
(A)O 3 VV-F 7G0.75	other colors	7.1-9.0	50	108	18
