CCTV/CATV/Satellite/Antenna OEM/ODM RG59 Coaxial Cable

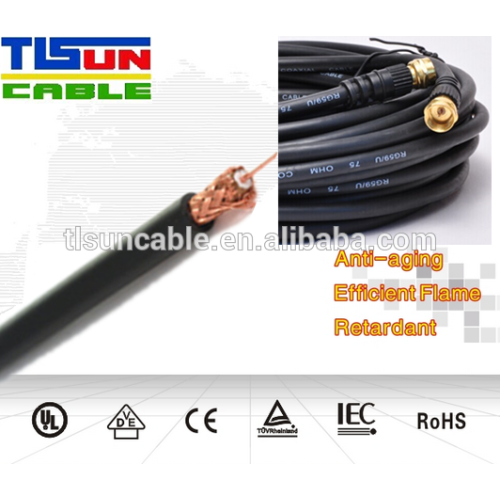

CCTV/CATV/Satellite/Antenna OEM/ODM  RG59 Coaxial Cable     Product Description                                                               RG59 coaxial cable
1)0.81mm CCS OR CU +3.66mm FPE + Al-foil + 16 x 6 x 0.12mm + 6.30mm PVC.
2) High quality RG59 COAXIAL CABLE : 0.81mm CCS +3.66mm FPE + Al-foil + 16 x 6 x 0.12mm + 6.30mm PVC Description:
1) Copper clad steel conductor
2) Dielectric: gas expanded polyethylene
3) Shield: bonded type aluminum polypropylene laminated foil and aluminum braided wire
4) PVC or sunlight resistant PVC Jacket

Application:
Drop cable for CATV and MATV distribution

Features:
1) High physical foaming
2) Low loss in attenuation
3) Options:
   a) Dual
   b) Quad shield
   c) Messenger
   d) Quad shield and messenger   2. RG59 Coaxial Cable Electrical Characteristics

Impedance(Ω)	75±3
Velocity of Propagation	83%
Capacitance(pF/m)	53.1
Structural Return Loss(≥dB)	1-1000Mhz        23 1000-2250Mhz  20

3. RG59 Coaxial Cable Attenuation [@68°F.(20°c)]

Frequency(MHz)	Maximum(dB/100m)
5	2.92
55	6.40
211	11.78
270	13.29
300	14.01
350	15.22
400	16.01
450	17.39
550	19.36
750	22.83
870	24.74
1000	26.54

    3.our services:OEM&ODM are available     a.ODM services:   1).any color available   2).Your brand on cable available   3).Label with your logo   4).Your brand on pull out box ( company name and logo.)   5).Your brand  on carton ( company name and logo...)   6). RG59 coaxial cable specifications Made according to your specs.
