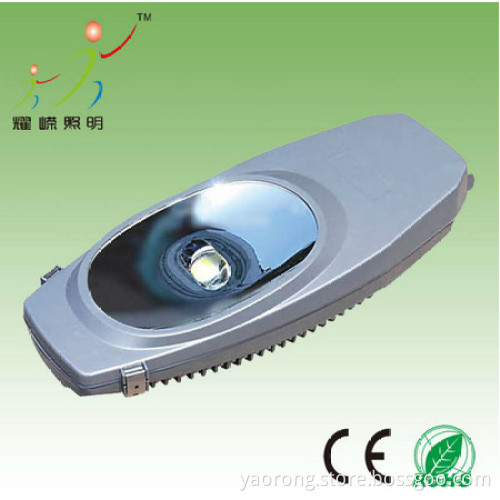

COB LED Street light 60W Patented Design Cree+MeanWell Driver CE Rohs IP65 IES Dialux simulation service

Specifications   1. Bridgelux chip,120lm/w 2. MeanWell Driver 3. IP65 4. CE&RoHS

  TYPICAL APPLICATIONS: Highway | Main Street | Normal Road | Laneway | Park | Garden | Parking Area   COMPETITIVE HIGHLIGHTS: *Patented all-in-one design, ideal product for all project. *Featuring CREE XPE LED chips, outstanding energy saving performance. *Patented power supply technology, electricity surge and overheating auto-protection.  *Patented heat dissipation technology, 50000 hours long life with minimum luminous decay. *Universal input voltage, AC / DC both work without any adapter or transformer. *High power factor to minimize total harmonic distortion. *Instant start and flicker free to reduce the eyestrain. *Very even light distribution and high uniformity, no glare to eyes. *Good color rendering, vivid colors under the light. *Industry-leading 5-5-10 year warranty. *DC 12V and 24V version also available for solar power and other applications.

Input Voltage		AC85V-265V
Freqency Range		50Hz--60Hz
Tatal Harmonic Distortion		≤9%
power Factor		>0.98
Power Efficiency		>87%
Working Voltage		DC30-36V
led quantity		1PC
Led consumption		60W
System Consumption		68 W
LED luminous efficiency		70-80lm/W
lamp's Efficiency		>91%
Average illuminance	(height)8M	>50 lux
	(height)10M	>30 lux
	(height)12M	>18 lux
Illuminance Area	(height)6M	12*24 M
	(height)8M	16*32 M
	height)10M	20*40 M
Illuminance  Uniformity		>0.7
Color Temperature	WW	2700k--3900k
	PW	3900k--6000k
	CW	6000k--7500k
Color Rendering Index	WW	Ra>68
	PW/CW	Ra>75
Light Distribution
Light Design		LED
Junction Temperature		≤80°C
Working Temperature		“-40°C~+55°C”
storage Temperature		“-25°C~+65°C”25°C
IP Grade		IP65
Working life-span		50000H
Power line		0.75mm2
Color of lamp shell		White blue silver
Certificate		CE ROHS
lamp weight:G.W./N.W.		12KG/11.5KG
lamp packing dimension		76.5*21*31.5cm
