45deg 100w led high bay lamp 50-400w offered with ies.file and dialux simulation 45,90,120 degree optional 5 years warranty IP

Specifications 100w led industrail lamp 50-400w offered with ies.file and dialux simulation

45,90,120 degree optional

5 years warranty IP

Specifications   100w led high bay
1)50-400w
2)ies.file and dialux
3)CE and IP65
4)led high bay,flood,street,tunnel and wallpack

    HB220 and HB300 series (50-400w )                                               --    ----------------------Professional LED lighting manufacturer   1)50-400w offered 2)IES.file and test report provided 3)Dialux imulation can be showed after the length ,heigh ,width and need lux been told . 4)IP65 and explosive-proof grade 5)Products range :led high bay,flood ,street,tunnel and wallpack.   Lamp features --------------------   1)Unqiue heat pipe technology for heat dissipation ,Combine aluminum alloy and copper pipe heat,and its our unique and patent products. 2)The anodic oxidation spinning reflector can be separated from the main body part ,easy to transport. 3)High light transmittance PC cover used upon the led . 4)Using PC cover for IP54 and class lens for IP65 . 5)This lamp can be used for led explosion-proof light in asia area. 6)45,90,120 degree alluminum reflector and high light transmission 45 degree PC reflector optional .   Lamp speciafication :

description
1	Model:	YR-HB220-W100
2	Certification:	CE and RoHS
4	Input voltage:	AC85-264V
5	Input frequency:	50/60HZ
6	Consumed power:	113W
7	Power factor:	>0.9
8	Light source:	100W
9	Luminous flux:	>8350lm
10	Light efficacy:	>75 lm/W
11	Color tempreture:	3000 6000K optional
12	Color rendering index:	75Ra
13	LED angle:	45/90/120(Picture show is 45)
14	Shape:	Round
15	Material:	Extruded heat sinker
16	Cover color:	aluminium silver
17	Heat sinker Dimension:	H:200mm D:160mm
18	Net weight:	6.1kg
20	Working tempreture:	-40 to +50C
21	Lifespan:	>50000hours
22	Warranty:	3 years

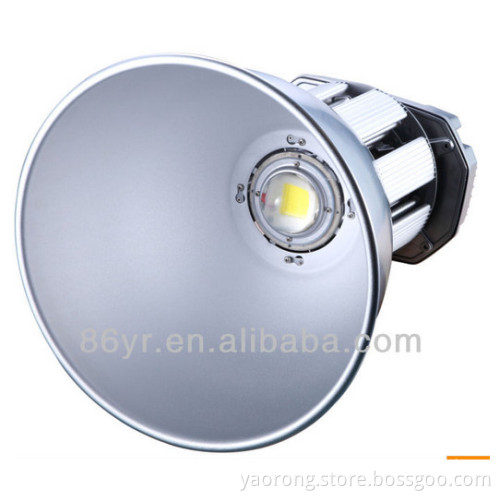

  Lamp detail pictures :

Packing			EXW price(USD)
1	piece in one  inner box
	size:33*33*37cm
	4 boxes/carton
	56*56*39CM/carton
Application area
Indoor	It can be used in workshop,warehouse,parking lot,toll gate,gas station,supermarket,exhibition hall,gym and other places.
