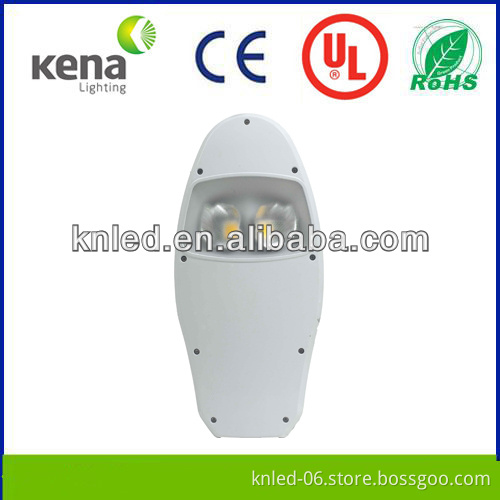

75w led street light

Product Description   Specifications   high power led street lighting 75W
3 years warranty
IES file offered
16 years experience, 12years gold supplier

  led projector for street light 220voltage 75W led street light KN-SL690-75W         1. Factory advantage:        Our advantages:
1. We have more than 16 years experience for LED development and led production.
2. We have our own mould factory for all our heat sinks and fittings housing. Patent LED encapsulation for LED with imported chip.
3. We have most high tech circuit design engineer department,all our circuit comply with CE and UL.
4. We have huge market for outdoor fittings, include LED street lights and high bay, tunnel lights, flood lights       2. Technical Parameters

	Input Voltage			AC85V-265V
	Freqency Range			50Hz~60Hz
	Total Harmonic Distortion			≤ 9 %
	Power Factor			>0.98
	Power Efficiency			>87 %
	LED Working Voltage			DC30~36V
	Led qty			2 PCS
	Led Consumption			75 W
	System Consumption			84 W
	Led Luminous Efficiency			80-110Lm /W
	Led Initial Flux			6750-8250 Lm
	lamp’s Efficiency			>91 %
	Average Illuminance	8 M		45 Lux
		10 M		29 Lux
	Illuminance Area	8 M		28*15M
		10 M		32*18.3M
	Illuminance Uniformity			>0.5
	Color Temperature			2700-7000k
	Color Rendering Index			Ra>75
	Light Design			LED+reflector
	LED Junction Temperature			≤80°C
	Working Temperature			-35°C ~ +45°C
	Storage Temperature			-25°C ~ +45°C(25°C best)
	IP Grade			IP65
	Net weight			10.5 Kg
	Working Life-span			50000H
	wire			3*1mm2
	wire connection		Brown	L
			Blue	N
			Y/G	G
	The color of the lamp shell			white
