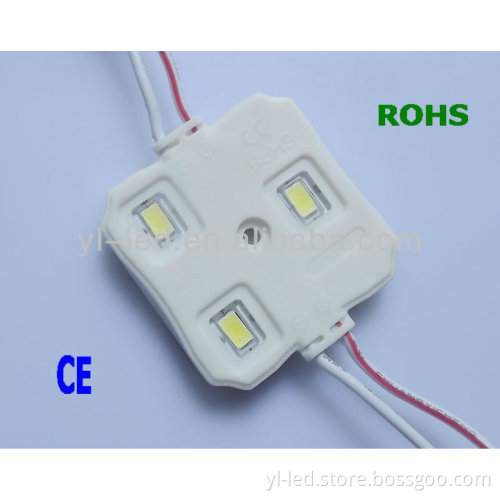

HOT SALE high brightness 5630 waterproof injection led module

Specifications 1.tanwan famous big chip,

2.high brightness, each 5630 can reach to 50lm.

3.low light failing,

4.no shadow.

5.2 Years

Product Applications: SMD LED Modules with big light angle,no shadow,low light falling,easy to install and free maintainess;widely used in three-dimensional light words,restaurant, hospital, grocery and casino. Features:
·Highest Brightness With famous chip,high brightness,low light failing,no shadow.
·Easy Installation
LED Modules can be easily installed with 3M double-sided sticking tape and . ·Life Span
LED Modules have a life time of more than 50,000 hours.
·Totally waterproof
With IP65 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.
·Friendly environment
Pb free. With CE/RoHS/SGS certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.
·Safe Application

Item No.	YL4037ZTF-3W5630	YL4037ZTF-3W5630	YL4037ZTF-3W5630	YL4037ZTF-3W5630	YL4037ZTF-3W5630
Size	L42mm*W37mm*H8mm YL4037ZTF-3W5630
LED Quantity	3PCS  LED 5050
Input Voltage	DC Input 12V
View Angle	120 Deg.
Current	100mA	100mA	100mA	100mA	100mA
Power	1.2W	1.2W	1.2W	1.2W	1.2W
Luminance	105LM	105LM	105LM	105LM	105LM
Color	White 3000-10000K
Connector	UL 1007 20# Gray White Wire   Length  100mm Gray Anode White Cathode
Group	20PCS
Max. Group	≤20PCS
Base	Milk White PS
Life	50 000 Hours
Ambient Temperature	-40°C- 60°C
Warranty	24Moths
Weight	14.7g/PCS
IP Grade	IP65
