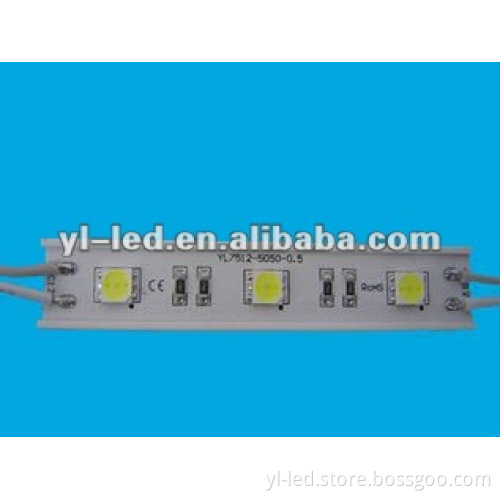

high power 5050 smd led module with aluminum pcb

     high power 5050 smd led module with aluminum pcb     Product Applications:
5050 SMD LED Modules with big light angle,no shadow,low light falling,easy to install and free maintainess;widely used in three-dimensional light words,restaurant, hospital, grocery and casino. Features:
·Highest Brightness With famous chip,high brightness,low light failing,no shadow.
·Easy Installation
LED Modules can be easily installed with 3M double-sided sticking tape  .
·Life Span
LED Modules have a life time of more than 50,000 hours.
·Friendly environment
Pb free. With CE/RoHS/SGS certificate, LED Modules are up to 60% more energy efficient than neon.
·Safe Application
Low voltage DC12V, safety and stable. Free maintenance

Item No.	YL7512-3W5050-0.3W
Size	L75mm*W13.5mm*H5.7mm
LED Quantity	3 PCS LED 5050(0.3W)
Input Voltage	DC Input 12V
View Angle	120 deg.
Current	100mA
Power	1.2W
Luminous	92LM
Color	White 3000-100000K
Connector	UL 1007 20# Gray White wire  Length  100mm  Gray Anode White Cathode
Group	15PCS
Max. Group	≤15PCS
Base	Milk White PVC
Life Span	50 000 hours
Ambient Temperature	-40°C- 60°C (-40°F~140°F)
Warranty	24 Months
Weight	6.8g/PCS
