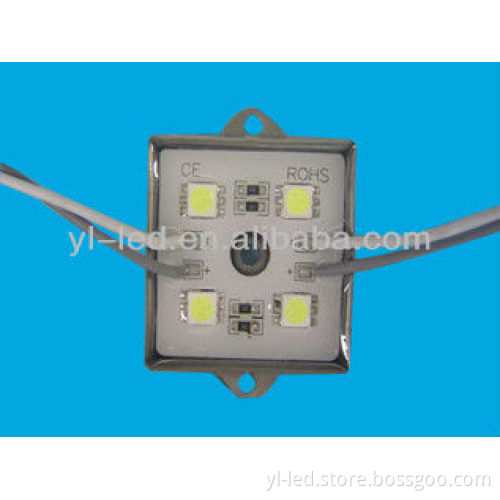

5050 high power led module

Specifications 1.4 pcs 5050 smd led modules

2.highest Brightness

3.Easy Installation

4.Long Life Span

5.Safe Application

Product Applications:
5050 SMD LED Modules with big light angle,no shadow,low light falling,eay to install and free maintainess;widely used in three-dimensional light words,restaurant, hospital, grocery and casino.

  Features:
·Highest Brightness With famous chip,high brightness,low light failing,no shadow.
·Easy Installation
LED Modules can be easily installed with 3M double-sided sticking tape  .
·Life Span
LED Modules have a life time of more than 50,000 hours.
·Totally waterproof
With IP65 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.
·Friendly environment
Pb free. With CE/RoHS/SGS certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.
·Safe Application
Low voltage DC12V, safety and stable. Free maintenance

Part No.	YL3333TF-4W5050	YL3333TF-4B5050	YL3333TF-4G5050	YL3333TF-4Y5050	YL3333TF-4R5050
Dimension	L45mm*W36mm*H4.6mm
LEDs	4PCSLED 5050
Input Voltage	DC Input 12V
View Angle	120deg
Current	120mA	120mA	120mA	120mA	120mA
Power	1.44W	1.44W	1.44W	1.44W	1.44W
Lumens	68LM	12.6LM	42.5LM	15.9LM	25LM
Color	White 3000-13000K	Blue	Green	Yellow	Red
Cover	Iron
Life	50 000hours
Temperature	-40°C- 60°C (-40°F~140°F)
Warranty	24Months
Weight	10g/PCS
IP Grade	IP65
