waterproof 2 diode SMD 5050 mini white led module for channel letter

    waterproof 2 diode SMD 5050 mini white led module for channel letter            specification    1. High Brightness With famous chip, high brightness, low light failing, no shadow.
2. Easy Installation
LED Modules can be easily installed with double-stick tape.    3. Life span
LED Modules have a life time of more than 50,000 hours.
4. Totally waterproof
With IP67 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.
5. Friendly environment
Pb free. With CE/RoHS/SGS certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.
6. Safe Application
Low voltage DC12V, safety and stable. Free maintenance

Item No.	YL4512F-2W5050
PCB Size	45*12 MM
LED Quantity	2pcs SMD5050
Input Voltage	DC Input 12V
View Angle	120  Deg.
Current	20 mA
Power	0.48W / module
Luminance	40-50LM
Color	R,Y,G,B,WW,PW,CW
Connector	UL 1007 18# Gray White Wire   Length  100mm Gray Anode White Cathode
Group	20PCS
Max. Group	≤20PCS
Base	PVC
Life	50 000 Hours
Ambient Temperature	-40°C- 60°C (-40°F~140°F)
Warranty	24Months
IP Grade	IP65

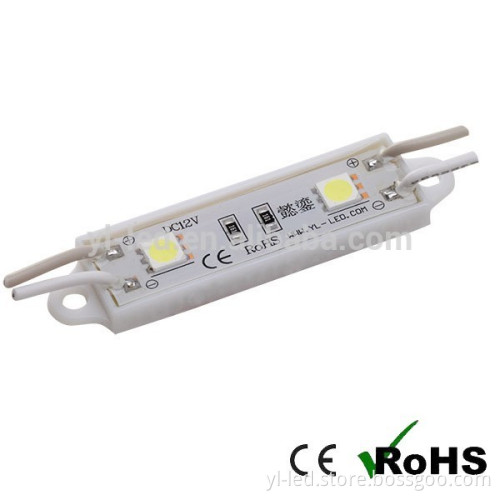

       Product photo          Company Information       Certifications CE, RoHS
