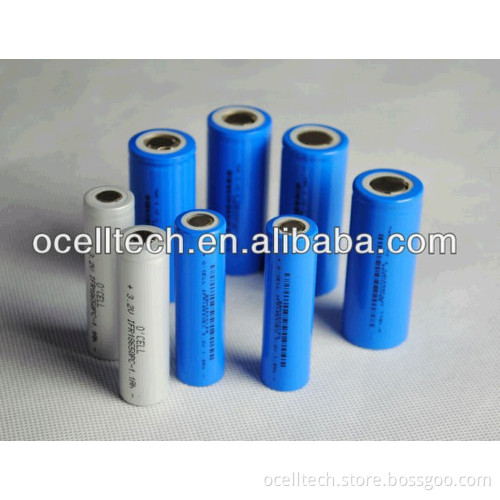

lifepo4 18500 battery for lawn lamp

No.

Items

Specifications

1

Charge cut-off voltage

3.65V

2

Nominal voltage

3.2V

3

Minimal capacity

950mAh @ 0.2C Discharge

4

Nominal capacity

1000mAh @ 0.2C Discharge

5

Charge current

0.5C

6

Standard charging method

0.5C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.02C

7

Charging time

Standard charge: 3.0 hours Ref

8

Max. charge current

1C

9

Max. continue discharge current

2C

10

Discharge cut-off voltage

2.0V

11

Operating temperature

Charging:      0°C ~ 45°C

Discharging: -20°C ~ 60°C

(Cell skin temperature cannot exceed 85°C)

12

Storage temperature/humidity

Temperature -10°C ~ +35°C

Humidity 65%±20%RH

(Recommended to store 23 ± 5°C for long term storage)

13

Cell Weight

33.0g±3.0g

14

Cell Dimension

Length:       50.5±0.5 mm

Width:         18.2±0.2 mm
