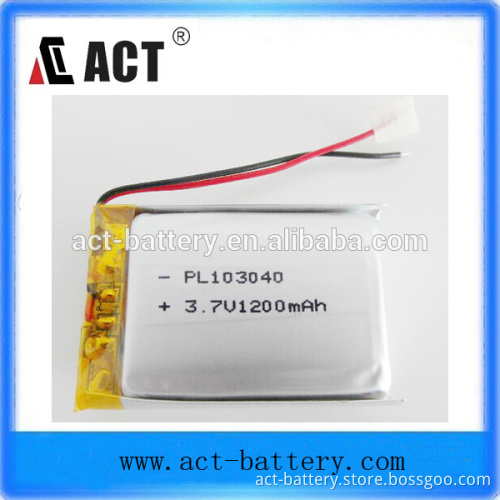

li-polymer battery 103040 3.7v 1200mah lipo battery

Product Description  Specification:

Item		Specifications	Remark
Model		PL103040
Dimension		10(T)*30(W)*40(L)mm
Nominal Capacity		1200mAh±5%	0.2C5A discharge,25°C
Nominal Voltage		3.70V	Average Voltage at 0.2C5A discharge
Standard Charge Current		0.2 C5A	Working temperature:0~40°C
Max Charge Current		1 C5A	Working temperature:0~40°C
Discharge Cut-off Voltage		2.75V
Charge cut-off Voltage		4.2V	CC/CV
Charge Time		Approx 3.0h	Working temperature:0~40°C
Discharge Current		Continuously:0.2C5A;Max:2.0C5A	Working temperature:0~60°C
Cell Voltage		3.7-3.9V	When leave factory
Impedance		≤50mΩ	AC 1KHz after 50% charge,25°C
Weight		Approx: 25g
Storage  temperature	≤1month	-10~45°C	Best 20±5°C for long-time  storage
	≤3month	0~30°C
	≤6month	20±5°C
Storage humidity		65±20% RH

  Advantages: 1. High Energy Density.
2. High Output Voltage.
3. Excellent Security.
4. Long Cycle Life: More than 500 repeated charge/discharge cycles.
5. Fast Charge Capacity: Can be fully charged in 2 to 3 hours with a rated voltage of 4.2 per cell
6. Environmental-friendly: No Pb, Cd added 7. Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload; 8. Injection Technology to make battery more stable; 9. With short-circuit production function, safe and reliable; 10. Factory mastered technology and competitive price; 11. CE/ROSH/SGS/UL/MSDS/UN38.3/IEC61233 standard.   Applications:   1. Telecommunications: Cellular phone, interphone, blue tooth earphone. 2. Video Devices: MP3/MP4/MP5, digital camera, portable DVD, portable television 3. Portable Devices: GPS,PDA, E-book ,PMP, PSP, portable medical device etc. 4. Illuminate Devices: Miner lamp, search light. 5. Others: Electric Toys, RC models     Company Information   Our Services Quality Warranty: 1. Most of the battery components are self-develop in ACT, who own strong machining ability & quickly  deceloping a variety of  new type's batteries. 2. On time delivery. 3. Return goods without reason before 7 days. 4. Warranty 1 year.  Payment Terms: 1. T/T, Western Union, Paypal  2. Sample order:100% prepaid;      Mass order: 30% deposite for order confirmation, 70% balance payment before shipment
