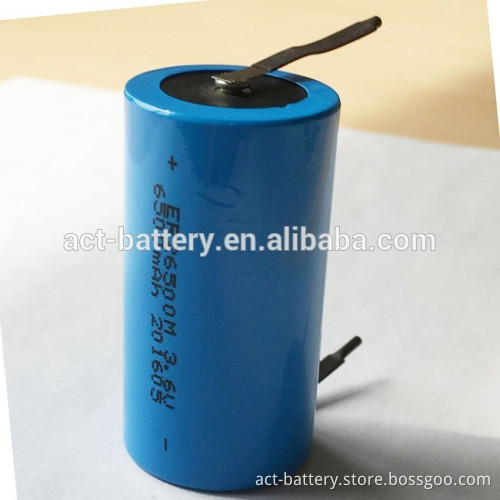

Saft Lithium R14 LSH14 ER26500M T1 3.6V Battery with solder tabs/pins

Saft Lithium R14 LSH14 ER26500M T1 3.6V Battery with solder tabs/pins       Product Description   Specifications:

Model	ER26500M
Alternative models	LS26500, LSH14, TL-4920, TL-5920, TL-2200, SB-C01, SB-C02, SL-770, XL-140F, XL-145F, LCT8500CE
Size	C
Cell Type	Spiral Type
Brand	ACT or OEM
Nominal capacity	6500mAh @ 10mA to 2.0V @ 23°C
Chemistry	Lithium thionyl chloride
Nominal Voltage	3.6V
Open circuit voltage	3.66V
Dimension	26.2(D)*50.0(H)mm
Weight	Approx. 55g
Shelf life	10 years
Max. continuous discharge current	1000mA
Max. pulse discharge current	2000mA
Yearly self- discharge	≤1%
Certification	CE/RoHS/UL/UN38.3/MSDS
Operating Temperature Range	-55C~+85C
Storage ( Recommended )	20C ~ +25C
Terminals/Connector	Radial tabs / radial pins / axial leads / flying leads
Exterior/Housing	Stainless steel container
Welding technology	Laser
Factory area	33,325 square meters

      Product Pictures:       Related Models:
  Main Applicaions:   > Radiocommunication and other
military applications
> Alarms and security system
> Beacons and emergency location
transmitters
> GPS equipment
> Metering systems
> Led lighting applications
> Others
    Company Information   1.  ACT has more than 20+ Years of experience in battery industry with extensive knowledge. 2. An own property industrail zone of 33,325 square meters. 3. More than 200 workers of production, make sure large order process. 4. Quick analyze, design and prototypes.  5. Professional battery manufacturer of lithium batteires. 6. Established quality control systems under ISO9001 & ISO14001 7. OEM/ODM battery packs are available 8. We treat clients as friends with quick action & respond 9. Most batteries are RoHS, CE, UL, UN38.3, MSDS approved. 10. Battery quality: A level   Our Factory:


 Production Flow:         Certifications
