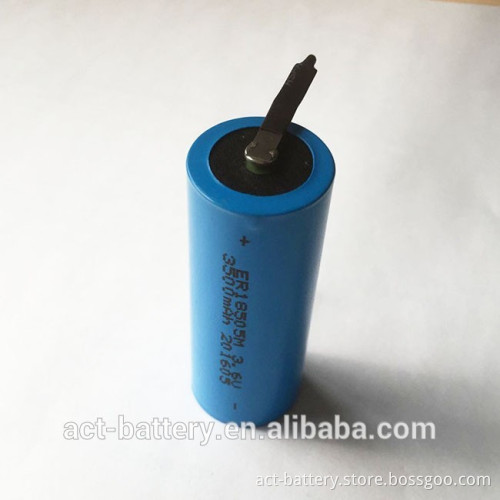

Lisocl2 A 3.6V 3.5Ah lithium battery ER18505M-T1 pins

Lisocl2 A 3.6V 3.5Ah lithium battery ER18505M-T1 pins       Product Description    BATTERY, ER18505M LITHIUM, 3.6V, A  Battery Size Code: A  Battery Capacity: 3.5Ah  Battery Voltage: 3.6V  Battery Technology: Lithium Thionyl Chloride  Battery Terminals: Raised Positive and Flat Negative  External Diameter: 18.5*50.5mm  Weight: 29g  Open circuit voltage: 3.66V  Maximum continuous current: 600mA  Maximum pulse current: 1000mA  Approval Category: UL, UN38.3, CE,  ROHS  Operating Temperature: -60°C ~ +85°C  Storage Temperature: -55°C ~ +30°C     Key Features:   > High and stable load voltage
> Superior drain capacity
> Low self-discharge rate(less than 1% after 1 year of storage at 20 °C )
> Stainless steel container
> Hermetic glass-to-metal sealing
> Laser welding
> No leakage guaranteed
> Non-flammable electrolyte
> Cetificate: ISO9001, UN, UL, UN38.3, ROHS, CE, MSDS. Applications: > Radiocommunication and other
military applications
> Alarms and security systems
> Beacons and emergency location
transmitters
> GPS equipment
> Metering systems
> Led lighting applications
> Others Storage: > Cells should be stored in a clean
&dry(less than 30% RH) area
> Temp. should not exceed +30 °C  Warning: > Do not use if cell casing is mangled
> Do not use different model of cell
in series
> Soldering the tag should be finished
in few seconds
> Do not try to recharge   Company Information      1.  ACT has more than 20+ Years of experience in battery industry with extensive knowledge. 2. An own property industrail zone of 33,325 square meters. 3. More than 200 workers of production, make sure large order process. 4. Quick analyze, design and prototypes.  5. Professional battery manufacturer of lithium batteires. 6. Established quality control systems under ISO9001 & ISO14001 7. OEM/ODM battery packs are available 8. We treat clients as friends with quick action & respond 9. Most batteries are RoHS, CE, UL, UN38.3, MSDS approved. 10. Battery quality: A level   Our Factory:
