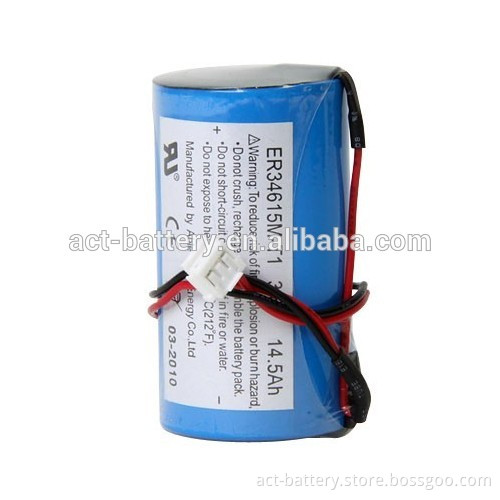

primary lithium battery ER34615m 3.6V

  Product Description  Specification: 1. Nominal Voltage:   3.6v 2. Nominal Capacity: 14500mAh 3. Size:  34.0mm(diameter)*61.5mm(height) 4. Operatig temperature range: -55°C~+85°C 5. Net  Weight: 105g 6. cycle Life: 10 years  7. Continuous current: 2000mA 8. Pulse current: 3000mA 9. Certification:UL/UN/RoHS/SGS/CE

model	er34615m
size	D
nominal capacity	14500mAh
nominal voltage	3.6v
open circuit current	3.66V
max continuous current	2000mA
max pulse current	3000mA
operating temperature range	-55℃~+85℃
storage life	10 years
self-discharge rate	less than 1% per year
diameter	34.0mm
height	61.5mm
weight	106g
battery technology	lithium thionyl chloride battery

      Company Information       About ACT Batteries Applicantion: 1. Radiocommunication and other military applications  2. TPMS 3. RFID 4. Alarms and security systems 5. Beacons and energy location transmitters  6. GPS equipment  7. Metering systems 8. LED applications 9. Others   Feature: 1. Higher energy density and lower weight. 2. Superior drain capacity. 3. Low self-dischage rate (less than 1% after 1 year of storage at 20 °C. 4. Stainless steel container. 5. Hermetic glass-to-metal sealing. 6. Non-flammable electrolyte. 7. Laser weilding. 8. Injection at bottom,avoiding the leakage of galss-to-metal. 9. Long service life-10 years 10. Short delivery,reasonable price and perfect service. 11. Cetificate:ISO9001,UN,UL,meet the RoHs requiretment. 12. Self-develop, Strong machining ability & quickly developing new type's battery  13. powerful equipments, strong production ability Storage: 1. Cells should not be stored in a clean & dry (less than 30%RH) area  2. Temp . should not exceed ±30℃   Friendship tips: 1. Do not use if cell casing is mangled 2.Do not use different model of sell in series 3.Soldering the tag should be finsihed in a few seconds 4. Do not try to recharge   Our Services Quality Warranty: 1. Most of the battery components are self-develop in ACT, who own strong machining ability & quickly  deceloping a variety of  new type's batteries. 2. On time delivery. 3. Return goods without reason before 7 days. 4. Warranty 1 year.  Payment Terms: 1. T/T, Western Union, Paypal  2. Sample order:100% prepaid;      Mass order: 30% deposite for order confirmation, 70% balance payment before shipment
