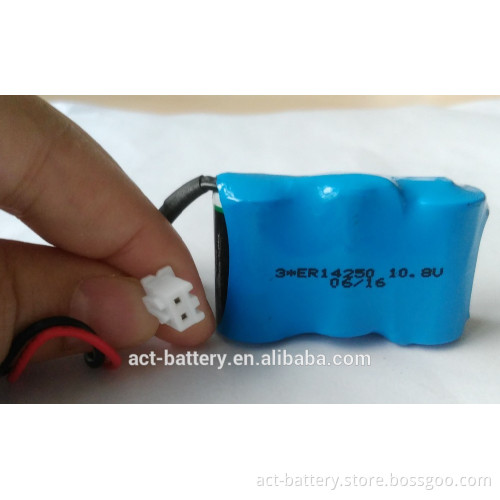

2016 3*ER14250 10.8V 1/2AA Lithium Battery Pack with JST PHR-2 XH-2P Connector

2016 3*ER14250 10.8V 1/2AA Lithium Battery Pack with JST PHR-2 XH-2P Connector       Product Description   Specifications:

Model	ER14250
Alternative models	LS14250/LST14250/LS14250C/TL4902/TL5902/SB-AA02/XL050F/ER3V
Size	1/2AA
Cell Type	Bobbin Type
Brand	ACT or OEM
Nominal capacity	1200mAh @ 0.5mA to 2.0V @ 23°C
Chemistry	Lithium thionyl chloride
Nominal Voltage	3.6V
Open circuit voltage	3.66V
Dimension	14.5(D)*25.2(H)mm
Weight	Approx. 9g
Shelf life	10 years
Max. continuous discharge current	20mA
Max. pulse discharge current	50mA
Yearly self- discharge	≤1%
Certification	CE/RoHS/UL/UN38.3/MSDS
Operating Temperature Range	-55C~+85C
Storage ( Recommended )	20C ~ +25C
Terminals/Connector	Radial tabs / radial pins / axial leads / flying leads
Exterior/Housing	Stainless steel container
Welding technology	Laser
Factory area	33,325 square meters

        Related Models:
  Main Applicaions:   > Radiocommunication and other
military applications
> Alarms and security system
> Beacons and emergency location
transmitters
> GPS equipment
> Metering systems
> Led lighting applications
> Others
