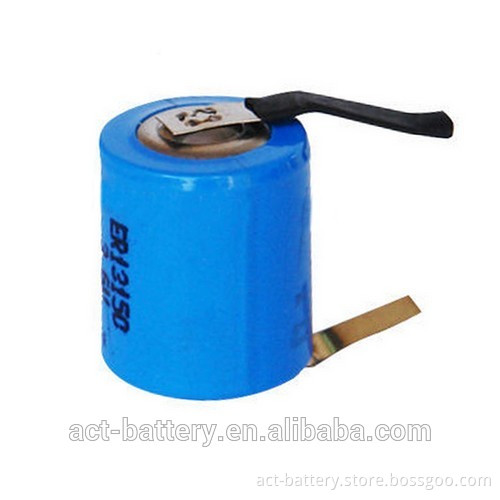

Smallest Battery ER13150 lithium battery 3.6V Tiny battery

Smallest Battery ER13150 lithium battery 3.6V Tiny battery       Product Description   Specifications:

Model	ER13150
Alternative models	ER13170
Size	-
Cell Type	Bobbin Type
Brand	ACT or OEM
Nominal capacity	450mAh @ 0.5mA to 2.0V @ 23°C
Chemistry	Lithium thionyl chloride
Nominal Voltage	3.6V
Open circuit voltage	3.66V
Dimension	13(D)*15(H)mm
Weight	Approx. 5.5g
Shelf life	10 years
Max. continuous discharge current	10mA
Max. pulse discharge current	20mA
Yearly self- discharge	≤1%
Certification	CE/RoHS/UL/UN38.3/MSDS
Operating Temperature Range	-55C~+85C
Storage ( Recommended )	20C ~ +25C
Terminals/Connector	Radial tabs / radial pins / axial leads / flying leads
Exterior/Housing	Stainless steel container
Welding technology	Laser
Factory area	33,325 square meters

  Related Models:
  Main Applicaions:   > Radiocommunication and other
military applications
> Alarms and security system
> Beacons and emergency location
transmitters
> GPS equipment
> Metering systems
> Led lighting applications
> Others
