hot sale photoresistor from largest factory supply

Specifications photocell sensor with best price

1.High sensitivity to daylight

2.technical support

3.fast delivery

4.full sizes available

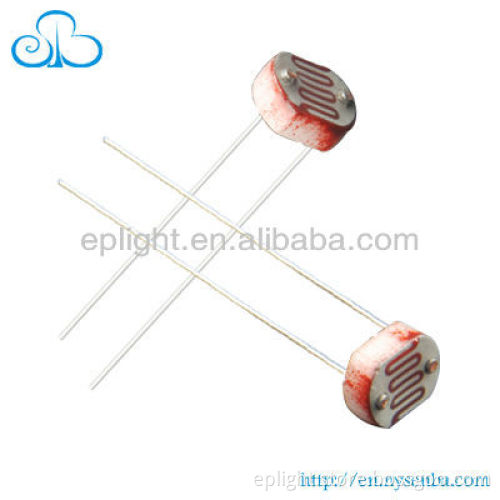

Promised quality Full product line Technical support   Best price   Fast delivery     Senb is the largest photo sensor manufacturer in China since 1998   with 70% of the domestic market share      Model No.: GL5537-1

Specification	Type	Max.  Voltage	Max.  power	Environmental  temp.	Spectrum  peak value
Φ5 series	GL5516	150	90	-30~+70	540
	GL5528	150	90	-30~+70	540
	GL5537-1	150	90	-30~+70	540
	GL5537-2	150	90	-30~+70	540
	GL5539	150	90	-30~+70	540
	GL5549	150	90	-30~+70	540



Specification	Light resistance (10Lux) (KΩ)	Dark resistance (MΩ)	r100    10	Response time (ms)		Illuminance resistance Fig. No.
				Increase	Decrease
Φ5 series	5-10	0.5	0.5	30	30	2
	10-20	1	0.6	20	30	3
	20-30	2	0.6	20	30	4
	30-50	3	0.7	20	30	4
	50-100	5	0.8	20	30	5
	100-200	7	0.9	20	30	6

    Typical Applications
1.Annunciator  2.Electronic toy
3.Industrial control 4.Indoor ray control
5.Lght control lamp  6.Light control switch  7.Photoelectric control                                        8.Camera automatic photometry     Full size CdS photoresistor is available, factory price! 3/4/5/7/10/12/20mm
