p10 mobile led screen truck xxx video Leeman P8.9 SMD led commercial advertising display screen

Characteristic of Outdoor Rental LED Display Screen   1. CNC + Die Casting process cabinets The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Super Slim
The thickness is 60mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
3. Light Weight
The weight of full panel is only 10KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, it saves your time and labor cost.
4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.   Advance of Die-casting rental outdoor led screen   1)LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.  2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.  3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.  4) Connector: Aerial grade brands ensure the stable transmission of power and signal. 5) PCB Board: adopt 4-layer design. 6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.   Ultra-thin & Lightweight Outdoor Die-casting Aluminum Rental LED Display Screen series:

Outdoor Die casting Aluminum Rental SMD LED Display 640mm x 640mm
Pitch/mm	P6	P6.67	P8	P10
Module size/mm	288x288	320x320	320x320	320x320
Density of pixel/(dots/m2)	27,777	22,478	15,625	10,000
Led encapsulation	SMD 3535	SMD3535	SMD3535	SMD3535
Resolution of module	48X48	48X48	40X40	32X32
Optimum viewing distance	6-50m	7-75m	8-75m	10-150m
View angle / °	160 H,120 V	160 H,120 V	160 H,120 V	160H,120V
Max power consumption/W/M2	1000	1100	1000	1000
Size of cabinet/mm	576x576	640X640	640X640	640X640
Resolution of cabinet	96x96	96x96	80x80	64x64
Weight of cabinet/kg	11	12	12	12
Driving method	1/8 scan constant current	1/8 scan constant current	1/4 scan constant current	1/4 scan constant current
Refresh rate Hz/S	≥2000	≥2000	≥2000	≥2000
Luminance of white balance	≥8000 nits	≥7500 nits	≥7000 nits	≥6500 nits
Operation of Environmental Temperature/°C	below 30  to  above 50
Working vlotage	110-220 VAC/+/- 10%
Grey scale/color	displaying colors≥16.7M(synchronized)
Brightness adjustment	256 levels of each color(manually),100 levels of each color(automatically)
Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system	linsn(sending card,receiving cards and Hubs)
Average of non-failure life	>50,00h
Life span	>100,000h
Defect dot rate	<0.0001

          1. We adopt Japanese die-casting aluminium alloy to produce durable cabinet with anti-seismic and tensile characteristics. which ensures more than 10-year life span.   2. Light weight, slim ,and fashionable design,unit cabinet weight is 15kg,the thickness is 80mm in total.   3. Excellent heat radiating design, heat can be quickly transfered to cabinet.   4. Fast lock enable the user to fast assemble and disassemble each cabinet with 30 seconds. each fast lock can undertake 200kg weight ,when hoisting,it makes the whole screen keep flat.   5. Indicator lights on the rear side of cabinet help the user inspect the working state easily.   6. Standard cabinet size L640mm*H640mm*T80mm/T105mm and standard modules for P6.67,P8,P10 ,P10.33 LED displays.   7. Portable flight case, good for taking away,use can put 6 cabinets in one flight case,save cost of freight for users.   8. Waterproof siginal and power connectors,oxidation resistance.   9. Opitional Install modes,hoisting, wall mount,standard structure etc

Applications:

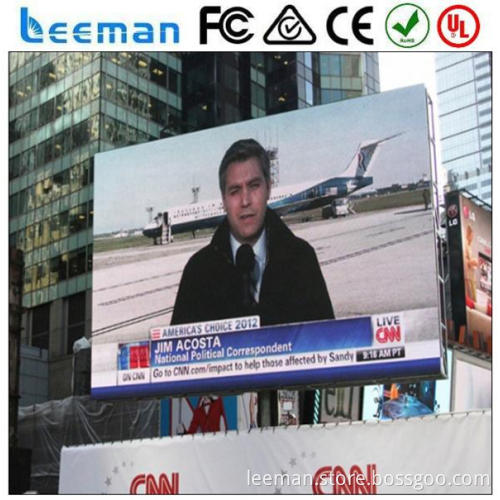

Sports Stadium, Outdoor Signage and advertisement, Entertainment centers, Building facilities, Community centers, Amusement parks, Auto Parts and Maintenance shops etc.   Super Slim Fixed Installation Outdoor LED Advertising Display Billboard series:

Specification of Outdoor Full Color Video LED display Screen
Classification	PH10	PH12	PH14	PH16	PH18	PH20	PH22	PH25	PH31.25
Pixel pitch(mm)	10(physical)	12(physical)	14(physical)	16(physical)	18(physical)	20(physical)	22(physical)	25(physical)	31.25
		6(virtual)		8(virtual)		10(virtual)		12.5(virtual)
Pixel configuration	1R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	2R1G1B	4R2G2B
LED package	DIP346	DIP346	DIP546	DIP546	DIP546	DIP546	DIP546	DIP546	DIP546
Pixel denstiy/ sqm	10000dots	6844dots	5102dots	3906dots	3086 dots	2500dots	2066dots	1600dots	1024dots
		27777 dots		15625 dots		10000dots		6400dots
Module size(mm*mm)	320*160	192*192	224*112	256*128	288*144	320*160	352*176	200*200	125*250
Module pixel( dots)	32*16	16*16	16*8	16*8	16*8	16*8	16*8	8*8	4*8
Standard size of cabinet(mm*mm)	960*960	1152*768	896*896	1024*768	1152*864	1280*960	1056*1056	1000*1000	1000*1000
Cabinet pixel( dots)	96*96	96*64	64*64	64*48	64*48	64*48	48*48	40*40	32*32
Best view angle	160°	160°	160°	160°	160°	160°	160°	160°	110°
Maximum power comsuption(W/sqm)	750	700	600	1000	950	900	700	600	600
Brightness cd/sqm	≥8500	≥8000	≥8000	≥ 7500	≥ 6500	≥ 6000	≥ 5500	≥5000	≥ 5500
Driving method	1/4 constant driving		1/2 contant driving	Constant static
Display color	256*256*256
Refresh frequency	3500HZ
Frame frequency	60HZ
Protection Level	Front: IP65; back: IP65
Working Voltage	AC220/110±10%
Working environment temperature	-40º degree - +50º degree
Life span	>100000hours
