curtain led display Leeman P8.9 SMD giant screen led giant display made in china

  Super Slim LightWeight Indoor Rental HD SMD RGB LED Video Wall Screen Panel   Model Number: P1.875/P2/P2.5/P3/P3.75/P3.91/P4/P4.615/P4.81/P5/P5.2/P5.92/P6/P6.944/P7.62/P8.925/P10/P10.41/P12.5   Die Casting Aluminum Rental Cabinet dimension:  480mm x 480mm 500mm x 500mm 512mm x 512mm 576mm x 576mm 640mm x 640mm 768mm x 768mm 800mm x 800mm 960mm x 960mm   Features: 1.Ultra-thin & ultra-light 2.Die casted AL cabinets, high precision with seamless splicing 3.Standard cabinet size: 500x500mm, convenient for area calculation 4.Highly effective & quick for transportation and screen assembling 5.SMD black light, wider viewing angle, high-contrast(5000:1),soft image 6.Special buckles structural connection between the cabinets,don’t need other tools 7.Cabinets are in common use for standard modules,shorten production cycl   Main Advantages: 1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.   Full HD Ultra-thin Indoor Aluminum Rental LED Video Screen TV series:

Items	Parameter
Pixel Pitch	PH2.5mm	PH1.9mm	PH1.6mm
Module Resolution(W*H)	160*120	208*156	256*192
Pixel Configuration	1R1G1B(in 3 n 1)
LED Encapsulation	SMD Black 1514
Pixel Density	160000Pixel/m2	270400Pixelm2	409600Pixel/m2
Driving Method	1/20Scan	1/26Scan	1/32Scan
Refresh Frequency	≥2880Hz(Support High refresh rate,depends on the system configuration)
Driver IC	SUM2032 / MBI5153 / MBI5041 / MBI5024
Grey Scale	≥16Bit(depending on the system and Configuration)
Cabinet Size	400mm*300mm
White balance Brightness	800cd/m2	800cd/m2	800cd/m2
Color Temperature	5000K,6500K,9300K,12000K(adjustable)
Viewing Angle	Horizontal 130°Vetical 120°
Optimal Viewing Distance	≥3m	≥2m	≥2m
Working Voltage	AC 220v/110V±10%
Module voltage	DC4.2V
Max Power Consumption	90W/pcs	80W/pcs	80W/pcs
Avg.Power Consumption)	90W/pcs	40W/pcs	40W/pcs
Lifetime	50000hours
Operating Temperature	-10℃~50℃
Net weight	4.8Kg/pcs	4.8Kg/pcs	4.8Kg/pcs

  Lightweight Die-casting Aluminum Rental LED Video Wall series:

Pitch/mm	P4	P4.8	p5.33	p6
Module size/mm	256x256	250x250	288x288	192x192
Density of pixel/(dots/m2)	62500	43402	35,200	27,777
Pixel composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Led encapsulation	SMD0606	SMD3528	SMD3528	SMD3528
Resolution of module	72X72	60X60	54X54	48X48
Optimum viewing distance	3-15m	4-16m	5-16m	7.5-20m
View angle / °	140H,120V	140H,120V	140H,120V	140H,120V
Max power consumption/W/M2	1,100	1,100	1,000	1,000
Size of cabinet/mm	512x512	500x500	576x576	576x576
Resolution of cabinet	144X144	120X120	108X108	96x96
Weight of cabinet/kg	8	8	8	8
Driving method	1/9 scan constant current	1/15 scan constant current	1/9 scan constant current	1/8 scan constant current
Refresh rate Hz/S	≥1500	≥1500	≥1500	≥1500
Luminance of white balance	≥1500 nits	≥1500 nits	≥1500 nits	≥1500 nits
Operation of Environmental Temperature/°C	below 30  to  above 50
Working vlotage	110-220 VAC/+/- 10%
Grey scale/color	displaying colors≥16.7M(synchronized)
Brightness adjustment	256 levels of each color(manually),100 levels of each color(automatically)
Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system	linsn(sending card,receiving cards and Hubs)
Average of non-failure life	>50,00h
Life span	>100,000h
Defect dot rate	<0.0001

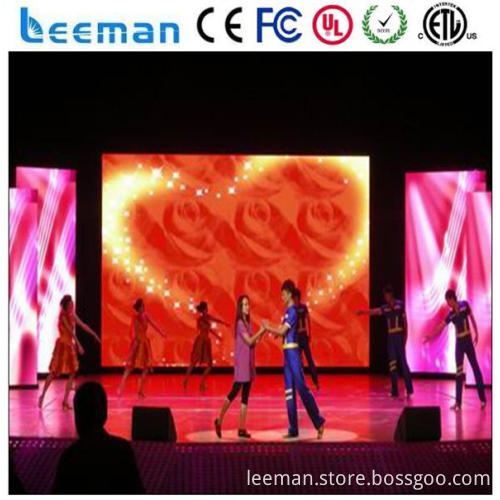

  Slim stage/concert background Aluminum hanging rental led screen series:

Items	Parameter
Pixel Pitch	P3.9mm	P4mm	P4.615mm	P5mm	P6mm
Module Resolution(W*H)	128(W)*128(H)	120(W)*120(H)	104(W)*104(H)	96(W)*96(H)	80(W)*80(H)
Pixel Configuration	1R1G1B(in 3 n 1)
LED Encapsulation	Black SMD 2121	Black SMD 2724	Black SMD 2724	Black SMD 3528	Black SMD 3528
Pixel Density	71111/ Pixel m2	62500 Pixel /m2	46944/ Pixel m2	40000/ Pixel m2	27778/ Pixel m2
Driving Method	1/16 Scan	1/15 Scan	1/13 Scan	1/12 Scan	1/10  Scan
Refresh Frequency	≥2880Hz	≥2880Hz	≥2880Hz	≥2880Hz	≥2880Hz
Driver IC	Special constant current IC with high refresh rate & high grey scale
Grey Scale	14Bit(depending on the system and IC configuration)
Cabinet Size	480*480mm
White balance Brightness	≥1800cd/ m2	≥1800cd/ m2	≥1800cd/ m2	≥1500cd/ m2	≥1500cd/ m2
Color Temperature	8000K±500 (adjustable)
Viewing Angle	Horizontal 160°Vetical 120°
Optimal Viewing Distance	>3m	>4m	>5m	>5m	>6m
Working Voltage	AC  220V/110V ±10%
Module voltage	DC4.2V
Max Power Consumption	100W/PCS	100W/PCS	110W/PCS	100W/PCS	80W/PCS
Avg.Power Consumption	60W/PCS	60W/PCS	60W/PCS	50W/PCS	40W/PCS
Lifetime	50000hours
Operating Temperature	–10℃ ~ 65℃
Net weight	8.5Kg/pcs	8.5Kg/pcs	8.5Kg/pcs	8.5Kg/pcs	8.5Kg/pcs


  1. CNC + Die Casting process cabinets The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.

2. Super Slim
The thickness is 60mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.

3. Light Weight
The weight of full panel is only 10KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, it saves your time and labor cost.

4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.   HD Indoor fixed installation Aluminum led video wall screen TV series:

Pitch/mm	P3	P4	P5	P6
Module size/mm	192x96	128x128	160x160	192x96
Density of pixel/(dots/m2)	111111	62500	40,000	27,777
Pixel composition	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1
Led encapsulation	SMD2020 Black Lamps	SMD2020	SMD3528	SMD3528
		Black Lamps	White Lamps	White Lamps
Resolution of module	63x32	32X32	32X32	32X16
Optimum viewing distance	3-10m	4-15m	6-16m	7.5-20m
View angle / °	140H,120V	140H,120V	140 H,120 V	140 H,120 V
Max power consumption/W/M2	1200	1,000	1,000	900
Size of cabinet/mm	576x576	512X512	640X640	768X768
Resolution of cabinet	192x192	128X128	128X128	128x128
Driving method	1/16 scan constant current	1/16 scan constant current	1/8 scan constant current	1/8 scan constant current
Refresh rate Hz/S	≥600	≥600	≥600	≥600
Luminance of white balance	≥1500 nits	≥1500 nits	≥1500 nits	≥1500 nits
Thickness	110mm
Operation of Environmental Temperature/°C	below 30  to  above 50
Working voltage	110-220 VAC/+/- 10%
Grey scale/color	displaying colors≥16.7M(synchronized)
Brightness adjustment	4096 levels of each color(manually),100 levels of each color(automatically)
Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system	linsn(sending card,receiving cards and Hubs)
Average of non-failure life	>50,00h
Life span	>100,000h
Functionless  dot rate	<0.0001
