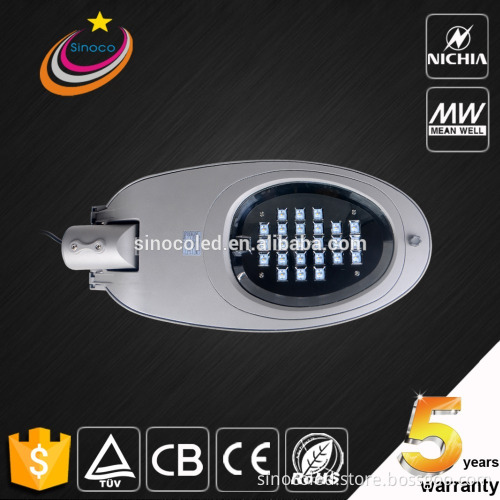

TUV CB CE IK10 IEC62471 certified led street light 60w Nichia led Meanwell driver

TUV CB CE IK10 IEC62471 certified led street light 60w Nichia led Meanwell driver

Nichia LED street light Spec:
Mode No.	ST-41-30W	ST-41-40W	ST-41-60W	ST-41-80W	ST-41-100W
Lamp Power	30W	40W	60W	80W	100W
LED PCS	24	36	48	72	96
Lumen	3903lm	5255lm	7090lm	9556lm	12212lm
Lumen Efficacy	135LM/W	135LM/W	135LM/W	135LM/W	135LM/W
Replace HPS	≥100W	≥150W	≥200W	≥300W	≥400W
Driver	MeanWell driver (THD: ≤15%)
Power Factor	>0.95
Input Voltage	100~277VAC, 50/60Hz
Lifespan	>50000 hours
Operating Temp.	-30 to 65 degree
Warranty	5years

  Advantages & Features of led street light:
ØHigh quality: Apply MeanWell driver and Nichia LEDs.  ØHigh brightness: The LED luminous efficiency the led we used  is:145-165lm/w.The Applied luminous efficiency(After considering the loss cost by through the lens) of the completed light fixture is 110lm/w~135lm/w ØDust and snow proof: Adopt smooth die-cast aluminum housing, successfully prevent the dust and snow from acumulating on the housing, thus better heat dissipation and longer life span. ØEasy to disassemble and assemble: You can easily open and cover up the housing with your hands, don't need any additional  tools. Once there is problem on the driver it is very convenient to change for a new one.

Optical parameter of SINOCO LED Street Light



Detailed Image of SINOCO LED Street Light

            Certification for SINOCO Led Street light   Application&Projects

Application of LED Street Light

1. Major Roadway, Residential Streets, Pedestrian Walkways, Expressway.
2. Parking Lot, Docks and Piers. 3. High crime areas, Square soprt guounds. 4. Industrial plants and other advertising lights.

Projects finished with SINOCO LED Street Light

          Quality Control SINOCO has very strict Quality Control System, from checking and evaluation of incoming materials to the delivery of products, each item will be checked and tested for several times.

LED Light QuaityTesting Equipments

For every piece of SINOCO LED Street Light, they will be tested in many procedures. Picture No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. Picture No. 2: Anti-Corrosion Testing, to make sure the street lights are working well even under corrosive environment. Picture No. 3: Drop Testing, to make sure the lamps remain good even dropped from high places Picture No. 4: Anti-Vibration Testing, to make sure the packages are strong and good enough for delivery. Picture No. 5~6: Dark Room for testing IES files and other Photometric datas.

Quality Control - Aging department

For every piece of SINOCO LED Lights, they will be aged for at least 72 hours before delivery to make sure of their long term and stable performances within lifetime.

Introduction of SINOCO LED Light Company Limited



Strict Quality Control System

ISO9001:2008 Quality control system Complete & strict quality control system from incoming material quality control, procession quality control to ready prodcut quality control. High Quality Manufacturer authorized by UL organisation Best Partner of VOLVO,BP, SHELL, PEMEX, Puma energy, etc.

More Company Introduction

SINOCO is a leading LED lighting manufacturer since 2005. Main products: LED High Bay Light, LED Flood Light, LED Tunnel Light, LED Gas Station Canopy Light, LED Street Light etc with 8 years warranty.

Production Center of SINOCO

SINOCO service

1. Before and after sales in time service. 2. Professional Lighting solution suggestions, dialux simulation available. 3. Payment terms: Paypal, TT, LC, DP etc. 4. Shipment terms: FOB, EXW, CIF, CFR 5. Short Lead time: 5-7 working days for sample order and orders less than 100units. 6. NO MOQ required, sample testing welcome.   Trade Shows

SINOCO at Lighting fairs

To know market trend and new products better, SINOCO is alway active in different kinds of Lighting exhibitions.
