Addressable WS2811 WS2812 WS2813 RGB LED Strip Lights with Controller

Addressable WS2811 WS2812 WS2813 RGB LED Strip Lights with Controller

$15.96

1-499 piece
$15.89

≥500 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Please Attention

Why LEDworker Lighting :

1,NICE QUALITY.
2,ONLINE PAYMENT.
3,FULL LINE PRODUCTS.
4,AFTER SALES SERVICES 24/7.
5.FACTORY DIRECT PRICE. PRICE EFFECTIVE.
6,EXPERIENCES SALES, EASY COMMUNICATION.
7,NO MOQ , 1PCS OK . SMALL ORDER WELCOME.
8,QUICK SHIPPING WITHIN 3 - 5 DAYS. SAMPLES HAVE STOCK.

We are not just say it. We really do it !!!

Feedback:

WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACK

Here is some of comments from our world-wide customers.
You can check all the comments at our company profile .

Please visit www. --> Click " Company profile
--> choose " Rating&Reviews"
Then you can see all comments from our clients.

Please note : all our customer comments is real one , NOT FAKE .

[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]

Product Description

Parameters:

Product name			SPI RGB LED RF Controller
Input voltage			5-24VDC
Power consumption			1W
Input signal			SPI(TTL)
Output signal			2 group SPI (TTL) signals
Dynamic mode			32
Control dots			Max 1024 pixels
Operation temperature			Ta: -30 °C ~ +55 °C
Case temperature (Max.)			Tc: +85°C
IP rating			IP20
Warranty			5 years
Protection			Reverse Polarity
EMC standard (EMC)			EN55032:2015,EN61000-3-2:2014, EN61000-3-2:2013,EN55024 :2010/A1:2015
Safety standard(LVD)			EN 61347-1:2015,EN 61347-2-11:2015
Certification			CE,EMC,LVD

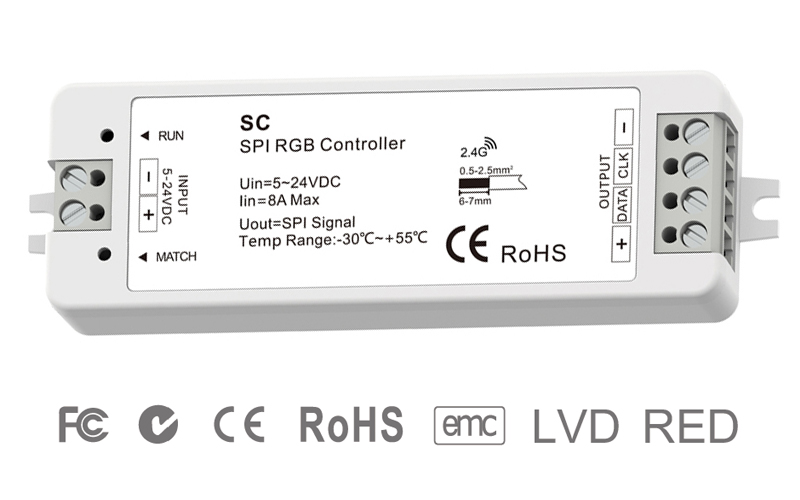

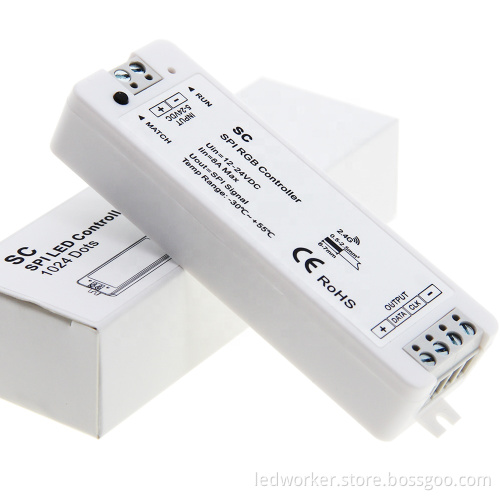

SPI RGB LED RF Controller

Model No.: SC

Compatible with 31 kinds IC/Max 1024 pixels/Wireless remote control

Product details:

How to connect:

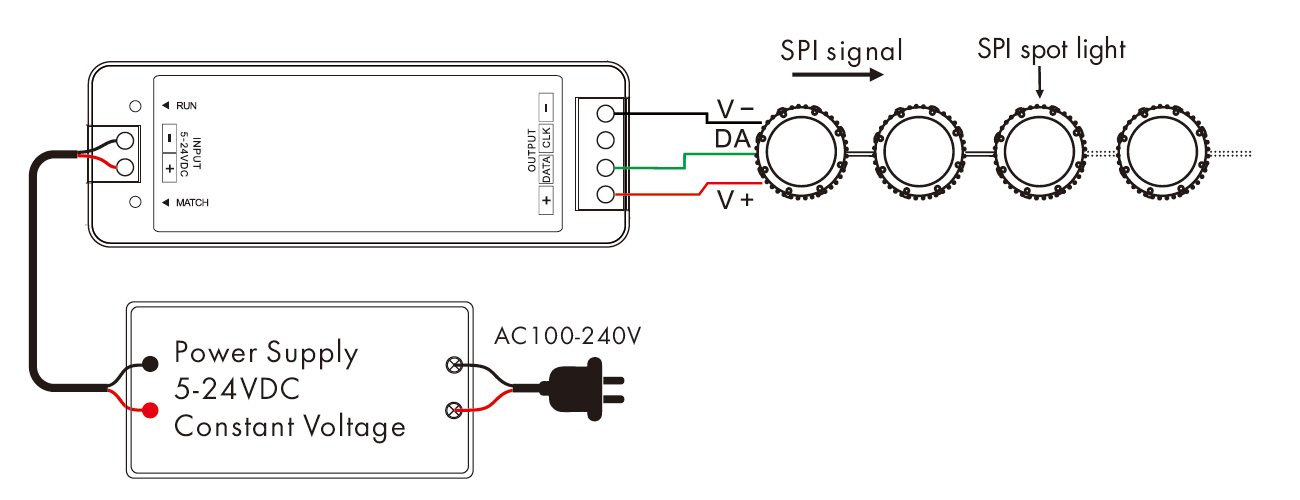

● SC connect with SPI spot light (TM1803)

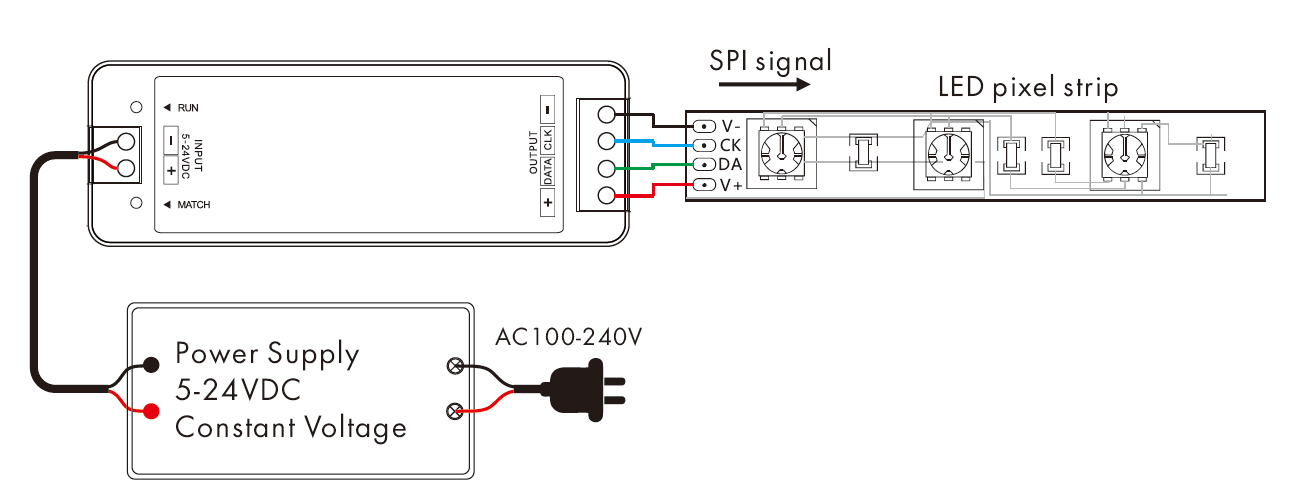

● SC connect with SPI pixel strip (LPD6803)

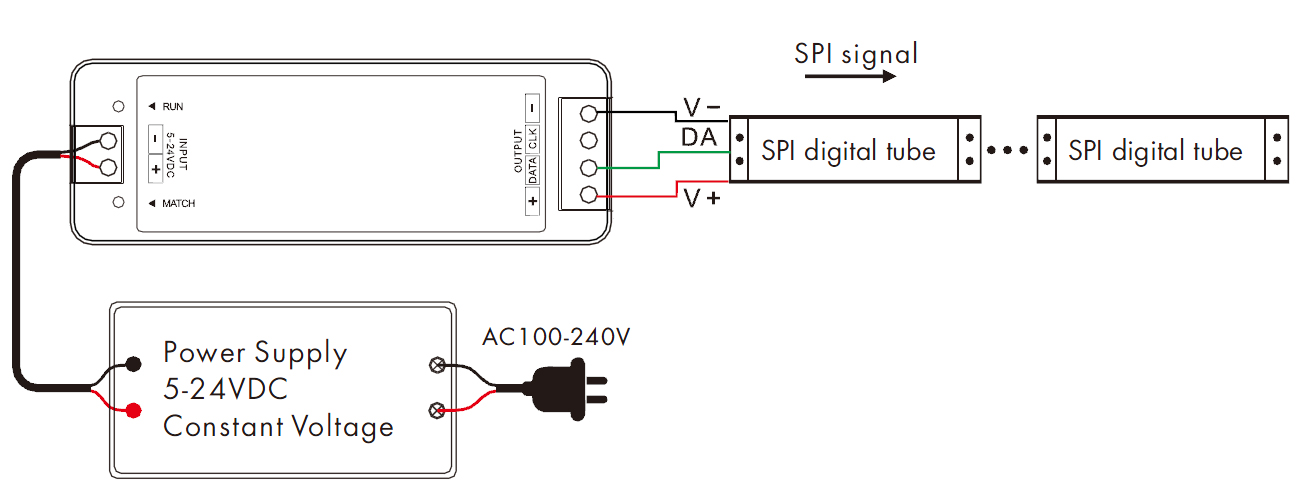

● SC connect with SPI Digital light tube (TM1809)

Match Remote Control

Match: Short press match key, immediately press on/off key of the remote. Delete: Press and hold match key for 5s to delete all match, The light blinks 5 times means all matched remotes were deleted.

Use R9 remote set SPI digital LED strip

● Set LED strip length [Pixel number(8~1024)]. * + 3 number + * for example: *032*, set pixel number to 32. *600*, set pixel number to 600. *1024*, set pixel number to 1024. ● Set LED strip chip type. * + 2 number + * *11*：TM1803 *12*：TM1809,TM1804,TM1812,UCS1903,UCS1909,UCS1912,UCS2903,UCS2909,UCS2912, WS2811,WS2812 *13*：TM1829 *14*：TLS3001,TLS3002 *15*：GW6205 *16*：MBI6120 *17*：TM1814B(RGBW) *18*：SK6812(RGBW) *19*：UCS8904B(RGBW) *21*：LPD6803,LPD1101,D705,UCS6909,UCS6912 *22*：LPD8803,LPD8806 *23*：WS2801,WS2803 *24*：P9813 *25*：SK9822 ● Set LED strip RGB order. * + 1 number + * *1*：RGB, *2*：RBG, *3*：GRB, *4*：GBR, *5*：BRG, *6*：BGR.

Application
