new china products for sale! RF 4-Key LED controller(Iron)

Specifications 1.Micro-computer control

2.easy connection,simplicity usage

3.jumpy,fade changes

4.speed adjustment

5.power down memory

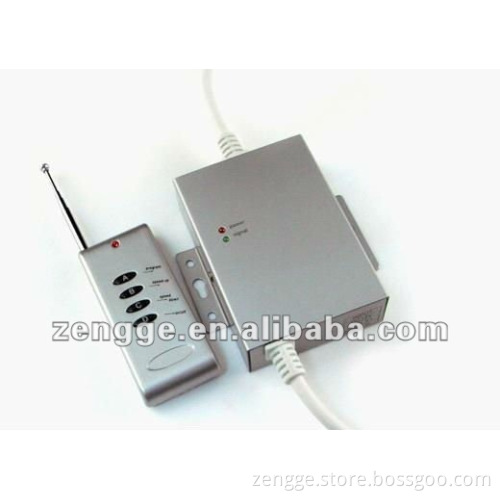

NAME: RF 4-Key LED controller(Iron) MODEL: CT12 AF4BLL        Summarization      RF 4-key LED RGB controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp,  glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing,  gradual changing and other effects of change. Total 11modes for your choice.       Technical parameters         Working temperature: -20-60 °C      Voltage supply: DC5V, 12V, 24V <optional> (for orders specify voltage)      Output: 3 channels     Connecting mode: common anode or common cathode     External dimension: L95ΧW65ΧH25 mm     Net weight: 224g      Gross weight: 266g      Static power consumption: <1 W      Output current: <4 A (each channel)      Output power: 5 V: <60W, 12V: <144W, 24V: <288W      External Dimension   Controller dimension:          Remote control dimension:                   Direction for use   1. Connect the load wire at first, following by the power wire; Please ensure short circuit can’t occur between connecting wire before you turn on the power;   2. Standard color changes as follows:

Item	Patterns	remarks
1	Static Red
2	Static Green
3	Static Yellow
4	Static Blue
5	Static Pink
6	Static cyan
7	Static white
8	3 color jump change	Button B and C is valid
9	7 Color jump change	Button B and C is valid
10	3 Color fade change	Button B and C is valid
11	7 Color fade change	Button B and C is valid

  Key instruction:          Connecting drawing:           Packing:    1pc in white box, White box:  L137XW78XH57mm 100pcs/carton, carton size:L23'*W15.8'*H11.8'/2.48'      Our Services:        1. Your inquiry related to our products or prices will be replied in 24 hours  2. Well-trained and experienced staffs to answer all your enquires in fluent English  3. OEM and ODM, any your customized Lighting & Controller we can help you design put into product  4. Distributorship are offered for your unique design and some our current models  5. Protection of your sales area, ideas of design and all your private information  6. we are specailed in led controller producting and can offer compitive price
