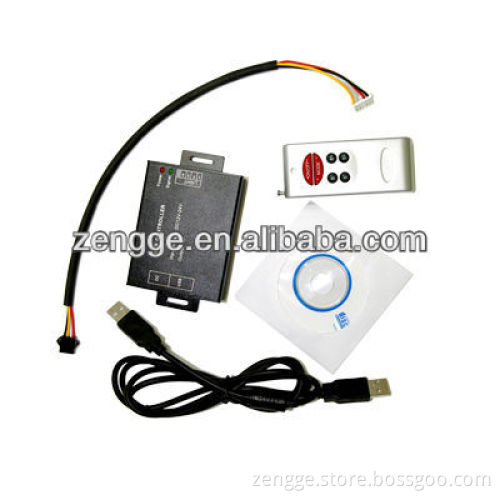

Magic Dream color RF IC LED USB controller

Specifications Magic Dream color RF IC LED USB controller

1.For IC6803/6889/6882

2.USB computer connected

3.6key RF remote

    Magic Dream color RF IC LED USB controller          Product Brief Instruction    LED single point-by-point controller is designed for led lights which use LPD6803\LPD8806 (LPD8803) as chips. It is used for house decoration and the surface of building. It can control a maximum of 2048 lighting changing individually with rich effects. At the same time, it has many advantages such as convenient connection, simplicity to use and others. Total have more than 50 modes for your choice.   Driving IC type:          LPD6803\LPD6889\LPD6882\LPD1101\D705\D708\ D709\D710\    DUCS6909S\UCS6912\UCS5903\UCS7009\LPD8803\LPD8809\LPD8812\LPD8819   Technical parameter     *Model:SRAPCA(S)    *Working temperature: -20-60 °C     * Voltage supply: DC12V, 24V      *Output: 3 channels      *Connecting mode: common anode or common cathode     *External dimension: L128ΧW65ΧH25 mm     *Net weight: 146g      *Gross weight: 189g      *controller power consumption: <1 W (not include light)     *Output current: <4 A (each channel)      *Output power: 5 V: <60W, 12V: <144W, 24V: <288W   External size:      Connecting Drawing       Remote control key function           20 kinds of Effect mode

NO.	Mode	NO.	Mode
0	lit a specify color	10	7color chase, from beginning to end
1	specify color gradual change	11	7color chase, from end to beginning
2	Single color change, from beginning to end	12	7 color chase, from middle to both sides
3	Single color change, from end to beginning	13	7 color chase, from both sides to middle
4	2 specify color change, from beginning to end	14	7 color jumping change
5	2 specify color change, from end to beginning	15	7 color gradual change
6	2 specify color change, from middle to both sides	16	7 color gradual change, from beginning to end
7	2 specify color change, from both sides to middle	17	7 color gradual change, from end to beginning
8	7 color running, from beginning to end	18	7 color fade change, from beginning to end
9	7 color running, from end to beginning	19	7 color fade change, from end to beginning

      Packing   Inner white box outer carton     ...
