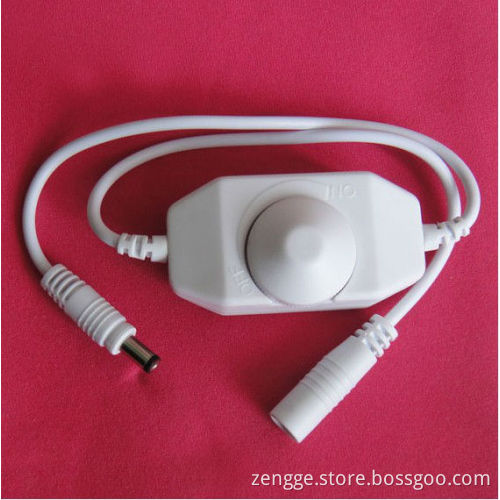

Single Color LED Dimmer 12V DC 4A

Specifications 1.Single Color LED Dimmer 12V DC 4A

2.Single Color LED Dimmer 12V DC

3.Single Color LED Dimmer 12V

4.Single Color LED Dimmer

                                                                         Single Color LED Dimmer 12V DC 4A     1.Single Color LED Dimmer 12V DC 4A
2.Single Color LED Dimmer 12V DC
3.Single Color LED Dimmer 12V
4.Single Color LED Dimmer         Production details of Single Color LED Dimmer 12V DC 4A   1. Working temperature: -20-60 degree
2. Supply voltage: DC5V, 12V, 24V optional(specify the required voltage on order form)
3. Output: 1 channel
4. External dimension: L61* W33* H32 mm
5. Packing size: L105 *W65* H40 mm
6. Net weight: 30g
7. Gross weight: 55g
8. Output current: <4A   Sizes of   Single Color LED Dimmer 12V DC 4A       Method of use of  Single Color LED Dimmer 12V DC 4A
1. Connect the load wire at first, following by the power wire;
2. Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the light is
brightest.
3.Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.

 Connect ways of   Single Color LED Dimmer 12V DC 4A     Attentions: Supply voltage is DC12V,other high voltage cause unit to fail 1. Never connect two wire directly in case of short circuit. 2. Lead wire should be connected correctly according to colors that connecting diagram offers. 3. Warranty of this product is one year. During this period, we guarantee to replaceor repair with no charge. 4.Tampering with unit or overload will not be coverd under warranty   Factory picture         Related Products ...
