new products for 2013! LED touching controller

Specifications 1.Frequency 433MHZ

2.Support DC 12V / 24V

3.Max power 216W

4.Wireless touching control

5.Easy to use, competitive price

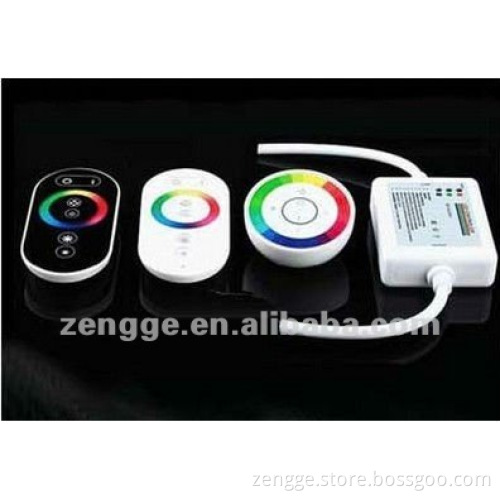

LED touch controller CC12 AF6C/CM-01           Technical Parameters(remote control)
1 Power supply: AAA battery * 3pcs
2 Cover material:ABS
3 Fabrication processing: multicolour printing & UV varnish    Technical Parameters(controller)    1.Operating temperature: -20-60 °C
 2.Power supply: optional DC12V~DC24V
 3.Dimension: L120*W70*H50mm
 4.Output: 3 CMOS open-drain output
 5.Connection: common anode
 6.Output current: <6A (per loop)
 7.Output power: 12V<216W,24V<432W
 8.Transmission/receiving frequency:433MHz       Functions of Keys
1 Key 1: on/off
2 Key 2: light changing mode(15 modes)
3 Key 3:color light/white light switching mode
4 Key 4: turn up(brightness/speed)
5 Key 5: turn down(brightness/speed       How to use
1 Press Key 1 to turn on/off in any state
2 Press Key 2 to activate light changing mode, a new mode each press,15 modes in tota
3 Press Key 3 once to activate white light mode, changing brightness by pressing Key 4/Key 5. Press Key 3 twice to activate color light mode, changing brightness by pressing Key 4/Key 5 or changing light color by touching the color ring
4 Resume fuction. The previous settings will be resumed while power on again
5 Matching code
Press Key 4 once within 3 seconds when power on again,the light will blink 3 times if matching is successful.
Clearing Code
Press Key 4 five times within 3 seconds when power on again,the light will blink 6 times if clearing is successful

1	Auto color changing	8 grades of brightness to adjust by pressing Key 4 or Key 5.
2	three colors jumps to change	8 grades of speed to adjust by pressing Key 4 or Key 5	9	Gree color jumps to change	8 grades of brightness to adjust by pressing Key 4 or Key 5.
3	seven colors jumps to change		10	Yellow color jumps to change
4	three colors jumps to gradual change		11	Cyan color jumps to change
5	seven colors jumps to gradual change		12	white color jumps to change
6	red color jumps to change	8 grades of brightness to adjust by pressing Key 4 or Key 5.	13	Red/blue light twinkles alternately	8 grades of speed to adjust by pressing Key 4 or Key 5.
7	Blue color jumps to change		14	Green/blue light twinkles alternately
8	Purple color jumps to change		15	Red/green light twinkles alternately

    Packing:   1pc in white box, White box:  L137XW78XH57mm
