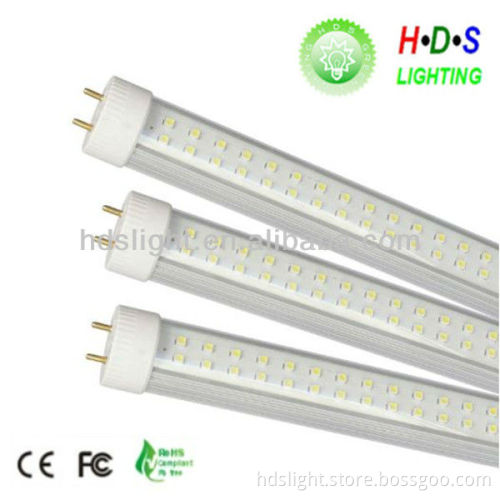

dimmable 3528 led tube t8 1200mm 20w

Specifications 20w 1200mm T8 led tube 3528smd

1. CE&RoHS approved

2. Epistar/cree/bridgelx led chip

3,2 years warranty

4,24hours aging test

Parameters of 3528 SMD 1.2M T8 LED Tube

Dimension	Nominal Power	Color Temperature(K)	Luminous Flux	Base
φ26 x (H)1198mm	20W	2300-7000K	70-85lm	G13
Beam Angle	Replace Halogen	Operating Temperature	Input Voltage	Certificate
>100°	40W	-20C ~ 50°C	85-265V	CE,RoHS
The Current	LED QTY	Net Weight	Main material	Color of cup
216±10mA	288PCS 3528smd	300g	AL+PC	Silver
Dimmable	PF	CRI	THD	Lifespan
Available	0.90~0.95	75~85	15%~20%	50,000 hrs

  Clear&Milking Cover are available   1.2m 3528 smd 20w LED tube       Packaging Details       Installation     Frequently Asked Questions     Some informations about our factory as following:   Certification     HDS have CE and ROHS certification for all current products. We can also help you to obtain more needed  certification such as TUV, UL, 3C etc. In the short term we intend to initiate regulation of the company’s business according to European ISO standards.
