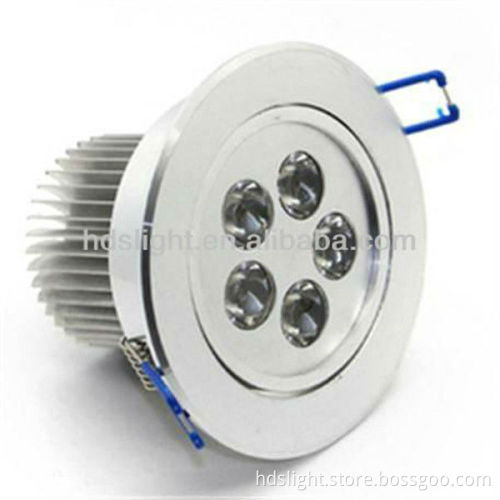

Kitchen Cabinet Design 5W Ceiling LED Downlight

Specifications 5w led downlight

1. CE&RoHS approved

2. epistar/cree/bridgelux led chip

3. 2 years warranty

4. 24 hours aging test

 Parameters of 5x1w led downlight

Dimension	Nominal  Power	Color  Temperature(K)	Luminous  Flux	Base
φ110 x (H)67mm Cutting (hole) 90mm	5W	2300-7000K	70-85lm	recessed
Beam Angle	Replace  Halogen	Operating  Temperature	Input  Voltage	Certificate
30 / 45 / 60°	21W	-20C ~ 50C	12/24v, 85-265v	CE,RoHS
The Current	LED QTY	Net Weight	Main  material	Color of  cup
320±10mA	5PCS	320g	AL	Silver
Dimmable	PF	CRI	THD	Lifespan
Available	0.90~0.95	75~80	15%~20%	50,000 hrs

 5w led recessed downlight The cutting hole dimension Product advantages:    1.Excellent heat dissipation structure, provides stable and reliable EDISON light-source;   2.High-class and elegant configuration High power led recessed 15w led downlight;   3.High output lumens and stable quality;   4.High heat conductivity material adopted;   5.Persist in applying the large-power bulb with the highest luminosity in the world;   6. Adopt high brightness and low light decline led High power led recessed 15w led downlight;    7.Low lumen attenuation: High quality constant current driver and good heat dissipation techniques.   Frequently Asked Questions   Some informations about our factory as following:     Certification   HDS have CE and ROHS certification for all current products. We can also help you to obtain more needed  certification such as TUV, UL, 3C etc. In the short term we intend to initiate regulation of the company’s business according to European ISO standards.
