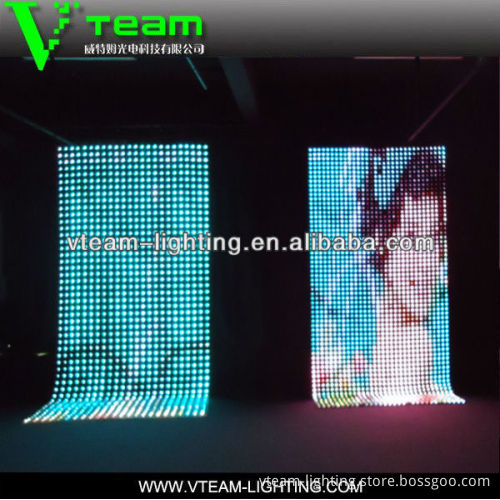

P55 flexible led mesh video screen for clubs xxx photos

Specifications P55 flexible led mesh video screen for clubs xxx photos

IP66 ,available for outdoor use

Fast installation

CE&ROHS

P55 flexible led mesh video screen for clubs xxx photos 1 led display video wall
2 Realized irregular shapes
3 Unique Double-side & Rhombus Display
4 CE, ROHS   led mesh screen for stage/club/fashion show Vteam iDOT series     Features of Creative soft screen (iDOT)    The protection is IP66 ,available for outdoor use  Easy to install and dismount by one person  High transparent ,lightweight  Unique Double-side  and Rhombus Display  Available different kinds of intall mothed  Realize irregular shapes  Convenient  for  maintenance realize single dot exchange and don't effect other dots  Humanized operating interface with breakdown indicator light  Certificate: CE( TUV), RoHS

Model	iDOT-55	iDOT-55H	iDOT-80	iDOT-80H
Pixel Pitch	55mm	55mm	80mm	80mm
Pixel Density	330/sq meter	330x2/sq meter	156/sq meter	156x2/sq meter
Brightness	900 nits	900 nits	420 nits	420 nits
Pixel Surface	SINGLE	DUAL	SINGLE	DUAL
Max Power Consumption	≤150W	≤300W	≤70W	≤140W
Ave Power Consumption	≤75W	≤150W	≤35W	≤70W
General Parameters
Pixel Composition	RGB 3 IN 1 SMD
Viewing Angles	H120° V120°
Refresh Rate	≥1000Hz
Gray Scale	12 bits
Color Space	68 Billion
Control System	PC based dynamic capture&mapping
Operating Life	More than 50,000 hours
Power Supply	AC90-260V, 50-60Hz, Meanwell
Protection	IP43/IP66 on pixel strings, IP54 on signal distributor and power box
Working Environment	Temperature -20-50°C, humidity 10-90%RH
