Specifications see through led display flexible

ultra thin, weight light, 80% transparent

can be curved,rolled up

CE RoHs

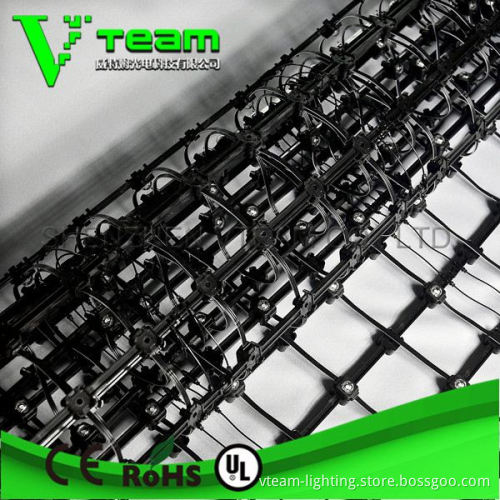

Alibaba Express see through led display flexible-Vteam   see through led display flexible is a high transparent(permeable), soft, flexible full color LED display. With features of flexible installation, lightweight, highly transparent, they are applicable for various kinds of installation. see through led display flexible is of high artistry and creativity which can be shaped with various shapes, such as bending, folding, winding, swinging, etc... see through led display flexible is the best choice for innovative designing companies.     Notable advantage of see through led display flexible:   ---create any shape client want,it is a unique freeform LED concept that can amaze spectators all over the world.   ---35/40/55/80/110/160mm pixel pitch can be optional.   ---single side or dual side can be optional   ---If one led point breaks down, it can be soon replaced with another one, so it's very convenient.   ---IP43/IP65/IP67   ---3 LED /4 LED in each dot can be achieved,maximum can be 9 LED      Application of see through led display flexible:   ---TV shows, live shows, events background display   ---Party, stage lighting   ---Hotel, disco, bars, night club ceiling and floor decoration   ---Architectures exterior lighting decoration    Parameter of see through led display flexible:

Model	MJ3- 55	MJ3- 55H	MJ3- 80	MJ3- 80H
Pixel pitch	55mm	55mm	80mm	80mm
Pixel density	330 / sq meter	330 X 2 / sq meter	156 / sq meter	156 X 2 / sq meter
Pixel composition	3 LEDs ( LED: RGB 3in1 SMD)
Brightness	2200 nits	2200 nits	1000 nits	1000 nits
Pixel surface	SINGLE	DUAL	SINGLE	DUAL
Max.Power Consumption	≤ 450 W	≤ 900 W	≤ 210 W	≤ 420 W
Ave.Power Consumption	≤ 225 W	≤ 450 W	≤ 105 W	≤ 210 W
Model	MJ4- 55	MJ4- 55H	MJ4- 80	MJ4- 80H
Pixel pitch	55mm	55mm	80mm	80mm
Pixel density	330 / sq meter	330 X 2 / sq meter	156 / sq meter	156 X 2 / sq meter
Pixel composition	4 LEDs (LED: RGB 3in1 SMD)
Brightness	3000nits	3000nits	1500nits	1500nits
Pixel surface	SINGLE	DUAL	SINGLE	DUAL
Max.Power Consumption	≤ 600 W	≤ 1200 W	≤ 280 W	≤ 560 W
Ave.Power Consumption	≤ 300 W	≤ 600 W	≤ 140 W	≤ 280 W
General parameters
Viewing angles	H120° V120°
Refresh rate	≥1000 Hz
Gray Scale	12 bits
Color space	68 Billion
Control system	PC based, dynamic capture & mapping.
Operating Life	> 50,000 hours
Power supply	AC90~260V, 50~60Hz,Meanwell
Protection	IP66 on pixel strings, IP54 on signal distributor and power box.
Work environment	temperature -20~50°C, humidity 10-90%RH
Weight	6KG / pixel roll, 3.8KG / power box
Flight case	length 1.26m, height 0.85m, width 0.74m

      Application Pictures of see through led display flexible:  The system connection of see through led display flexible:           Accessories:       More information about our company and products of see through led display flexible:       ....
