2013 Aibaba 70% Transparency xxx photos Led display

Specifications 2013 Aibaba 70% Transparency xxx photos Led display

New invention

Easy to install and dismount

2 years warranty

CE ROHS

  2013 Aibaba 70% Transparency xxx photos Led display ---(Gn Series)                                                           Overview:                   * Light, suitable for flow shows, convenient in transporting and jointing.              * Nice appearance and secure.              * Jointed correctly, could be dismounted by one person without tool              * High transparency. Light, air and frost could easily cross through it.              * Humanized operating interface with breakdown indicator lights.              * High debugging brightness with 500-2000nit and no damage to gray scale, matched well with the debugging technology with nice image.     Application:    § TV shows,live shows,event background display
§ Party,stage lighting,vocal concert,beauty pageant competitions   § Hotel,night clubs ceiling and floor decoration
§ Architectures lighting decoration

Model		G10		G12
Pixel Pitch		10.416mm		12.5mm
LED Type		RGB 3in1 SMD3528		RGB 3in1 SMD3528
Pixel density		9216 dots/s.q.m		6400 dots/s.q.m
Pixel Matrix		48x96 dot		40x80 dot
Panel Size		500x1000x54mm		500x1000x54mm
Weight		9.5kg		9kg
Protection Level		IP43		IP43
Brightness		900-1500 nit		900 -1500 nit
Viewing distance		≥10m		≥12m
Viewing angle (H/V)		140°/140°		140°/140°
Gray Scale		14bit		14bit
Color type		68.7billion		68.7billion
Max. Power consumption		200W/PCS		150W/PCS
Ave. Power consumption		80W/PCS		60W/PCS
Refresh Rate		960Hz		1000Hz
Gamma		-5.0~+5.0
Control system		Synchronous display with control PC by DVI
Type of signal input		Composite, S-Vide, Component, VGA, DVI, HDMI, HD_SDI
Input power		AC90~260V 50/60HZ
Working environment		Temperature -10°C~+50°C, humidity 10~90% RH
Operating Life		> 50,000hours
Certificate		CE

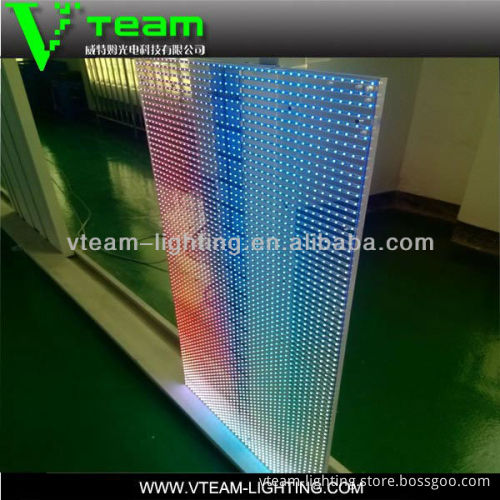

        Gn Series Photos as below,         Vteam-Lighting Beijing LED Exhibition Booth No.: B09, W3.
