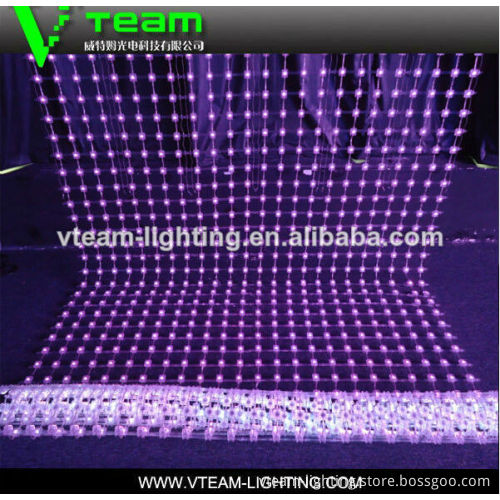

2014 New China Hot Selling full color led video curtain screen

Specifications full color led video curtain screen

ultra thin, weight light, 80% transparent

can be curved,rolled up

CE RoHs

2014 New China Hot Selling full color led video curtain screen       Overview:   led screen curtain full color led video curtain screen   Mahjong is a kind of lightweight LED string, which could also gather together to be the transparent full color display system by convenient accessories. Its features are flexible installation, light weight, highly transparent, which are adapted to various kinds of installation, such as bend, fold, winding, swing, etc..   IP 66, suitable for permanent outdoor or indoor use. The pixel pitch could be customer-made. Rich installation accessories, flexible installation, adapting to different scenarios. High permeability, go through light, air and smoke easily. We could achieve the flexible application of dot, line and face. No worry about the limitation of the application, we could achieve kinds of dysmorphism and test count. It is best choice for the creative design company to achieve easier design and various applications by one product Parameter:

Model	MJ3- 55	MJ3- 55H	MJ3- 80	MJ3- 80H
Pixel pitch	55mm	55mm	80mm	80mm
Pixel density	330 / sq meter	330 X 2 / sq meter	156 / sq meter	156 X 2 / sq meter
Pixel composition	3 LEDs ( LED: RGB 3in1 SMD)
Brightness	2200 nits	2200 nits	1000 nits	1000 nits
Pixel surface	SINGLE	DUAL	SINGLE	DUAL
Max.Power Consumption	≤ 450 W	≤ 900 W	≤ 210 W	≤ 420 W
Ave.Power Consumption	≤ 225 W	≤ 450 W	≤ 105 W	≤ 210 W
Model	MJ4- 55	MJ4- 55H	MJ4- 80	MJ4- 80H
Pixel pitch	55mm	55mm	80mm	80mm
Pixel density	330 / sq meter	330 X 2 / sq meter	156 / sq meter	156 X 2 / sq meter
Pixel composition	4 LEDs (LED: RGB 3in1 SMD)
Brightness	3000nits	3000nits	1500nits	1500nits
Pixel surface	SINGLE	DUAL	SINGLE	DUAL
Max.Power Consumption	≤ 600 W	≤ 1200 W	≤ 280 W	≤ 560 W
Ave.Power Consumption	≤ 300 W	≤ 600 W	≤ 140 W	≤ 280 W
General parameters
Viewing angles	H120° V120°
Refresh rate	≥1000 Hz
Gray Scale	12 bits
Color space	68 Billion
Control system	PC based, dynamic capture & mapping.
Operating Life	> 50,000 hours
Power supply	AC90~260V, 50~60Hz,Meanwell
Protection	IP66 on pixel strings, IP54 on signal distributor and power box.
Work environment	temperature -20~50°C, humidity 10-90%RH
Weight	6KG / pixel roll, 3.8KG / power box
Flight case	length 1.26m, height 0.85m, width 0.74m

      Pictures of LED Ball Project in Brazil:     Accessories:     Company Information     Packaging & Shipping     Our Services   After-sales Service:        1) Guarantee: 2 - 3 years      2) Offer technical guides for controlling breakdowns; arrange engineers for vexed problems.         3) Timely come up with solutions for customers' doubts   Why Choose Us?        1) Innovative LED Screen Manufacturer for indoor&outdoor rental events and fixed projects.            2) Strong R&D team ensures products with nice features.        3) VTEAM mainly focuses on achieving customers' innovative ideas by customizing lead screens.           4) Wide Applications: TV Station, studios, auto shows, concerts, clubs, discos, building facade, exhibitions, celebrations, etc.         How to Contact Us?                                                                                                          Send your Inquiry Details in the Below For sample, Click "Send" Now!
