See-through led stage curtain screen , Wall waterproof
- Payment Type:
- T/T
- Min. Order:
- 6 Piece/Pieces
- Min. Order:
- 6 Piece/Pieces
- Delivery Time:
- 20 Days
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | Guangdong, China (Mainland) |
---|---|
Supply Ability: | 500 Square Meter/Square Meters per Month |
Payment Type: | T/T |
led wall outdoor
flexible for rental business
IP 65
CE RoHs

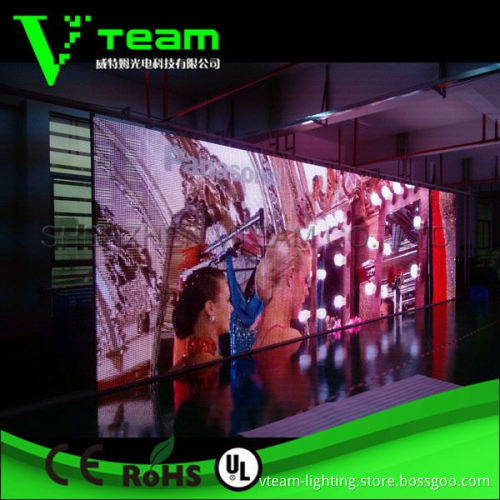

See-through led stage curtain screen , Wall waterproof See-through led stage curtain screen is a kind of LED colorful screen with the performance of lightness, thinness and transparency. Jointed correctly, easy to install and dismount, See-through led stage curtain screen also has simple structures with performance of security and durability. The electron device insert technologies are especially designed for the lighting rental merchants, the cabinets are waterproof and crash proof. The customers do not have to worry. The SMD is (1R+1G+1B) and static constant current drive, so See-through led stage curtain screen is with high brightness, high fresh rate and high gray rate, which would be the first choice for large size display products for outdoor use. Notable advantage of See-through led stage curtain screen: ---The protection rating is IP65, it could be applied temporarily outdoor, being made possible to operate in unexpected rainy days. ---Could shape any arc-shape within +/-20.Can install the minimun of 3.5M diameter circle shape. ---high brightness, high fresh rate and high gray rate Application of See-through led stage curtain screen: ---TV shows, live shows, events background display ---Party, stage lighting ---Hotel, disco, bars, night club ceiling and floor decoration ---Architectures exterior lighting decoration Parameter of See-through led stage curtain screen:
Item | iGrid 15 | iGrid 18.75 | iGrid 25 | iGrid 37.5 |
Pixel Pitch | 15mm | 18.75mm | 25mm | 37.5mm |
Pixel Density | 4444pixels/m² | 2844pixels/m² | 1600pixels/m² | 711pixels/m² |
Resolution | 40(H)×40(V) | 32(H)×32(V) | 24(H)×24(V) | 16(H)×16(V) |
Weight | 8KG | 7.5KG | 7KG | 6.5KG |
Brightness | ≥6000 cd/m² | ≥5000 cd/m² | ≥3200 cd/m² | ≥1500 cd/m² |
View Distance | ≥15m | ≥19m | ≥25m | ≥38m |
Max.Power Consumption | 900 W/m² | 700 W/m² | 400 W/m² | 200 W/m² |
Ave.Power Consumption | 480 W/m² | 400 W/m² | 220 W/m² | 110 W/m² |
Refresh rate | 1800HZ | 2400HZ | 3600HZ | 4800HZ |
Cabinet Size | 600×600×85mm(900×600×85mm can be customized) | |||
LED type | RGB 3in1 SMD | |||
Gray Scale | 16bit | |||
Color type | 68 Billion | |||
IP Rating | IP65 | |||
Viewing Angle | 140°/140° | |||
Brightness control | 0~100% 16 level | |||
Power input | 90~260V 50/60HZ | |||
Controller | Synchronous display with control PC by DVI | |||
Gamma | -5.0~+5.0 | |||
Support input | Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI | |||
Environment | temperature -20°C~+50°C,humidity 10~95% RH | |||
Operating Life | 50,000hours |
