Concert led screen , Led video display

Specifications Concert led screen

led wall outdoor

flexible for rental business

IP 65 for temporarily rain condition

CE RoHs

  Concert led screen , Led video display   Concert led screen is a kind of LED colorful screen with the performance of lightness, thinness and transparency. Jointed correctly, easy to install and dismount, Concert led screen also has simple structures with performance of security and durability. The electron device insert technologies are especially designed for the lighting rental merchants, the cabinets are waterproof and crash proof. The customers do not have to worry. The SMD is (1R+1G+1B) and static constant current drive, so Concert led screen is with high brightness, high fresh rate and high gray rate, which would be the first choice for large size display products for outdoor use.   Notable advantage of Concert led screen: ---The protection rating is IP65, it could be applied temporarily outdoor, being made possible to operate in unexpected rainy days. ---Could shape any arc-shape within +/-20.Can install the minimun of 3.5M diameter circle shape. ---high brightness, high fresh rate and high gray rate   Application of Concert led screen: ---TV shows, live shows, events background display ---Party, stage lighting ---Hotel, disco, bars, night club ceiling and floor decoration ---Architectures exterior lighting decoration     Parameter of Concert led screen:

Item	iGrid 15	iGrid 18.75	iGrid 25	iGrid 37.5
Pixel Pitch	15mm	18.75mm	25mm	37.5mm
Pixel Density	4444pixels/m²	2844pixels/m²	1600pixels/m²	711pixels/m²
Resolution	40(H)×40(V)	32(H)×32(V)	24(H)×24(V)	16(H)×16(V)
Weight	8KG	7.5KG	7KG	6.5KG
Brightness	≥6000 cd/m²	≥5000 cd/m²	≥3200 cd/m²	≥1500 cd/m²
View Distance	≥15m	≥19m	≥25m	≥38m
Max.Power Consumption	900 W/m²	700 W/m²	400 W/m²	200 W/m²
Ave.Power Consumption	480 W/m²	400 W/m²	220 W/m²	110 W/m²
Refresh rate	1800HZ	2400HZ	3600HZ	4800HZ
Cabinet Size	600×600×85mm(900×600×85mm can be customized)
LED type	RGB 3in1 SMD
Gray Scale	16bit
Color type	68 Billion
IP Rating	IP65
Viewing Angle	140°/140°
Brightness control	0~100% 16 level
Power input	90~260V 50/60HZ
Controller	Synchronous display with control PC by DVI
Gamma	-5.0~+5.0
Support input	Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Environment	temperature -20°C~+50°C,humidity 10~95% RH
Operating Life	50,000hours

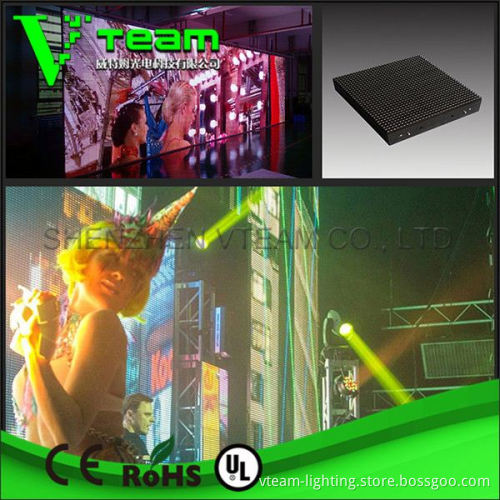

   Application Pictures of Concert led screen:     Accessories of Concert led screen:         More information about our company and products of Concert led screen:       ...
