Vteam 2014 Aliexpress new product folding LED Curtain

Get Latest Price

Payment Type:: T/T

Min. Order:: 1 Unit/Units

Min. Order:: 1 Unit/Units

Delivery Time:: 20 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)
Supply Ability:	500 Square Meter/Square Meters per Month 2014 Aliexpress new product folding LED Curtain
Payment Type:	T/T

Product Description

Specifications 2014 Aliexpress new product folding LED Curtain

Single point replacement

Double-sided display

CE,RoHS

2 years warranty

2014 Aliexpress new product folding LED Curtain Overview: 2014 Aliexpress new product folding LED Curtain 1 . The protection is IP65, available for outdoor using for rental 2 . Rich installation accessories. 3 . 40% Transparency 4 . Light-weight, only 9kg/pcs 5 . High permeability,going through light, air and smoke easily. 6. Realizing various irregular shapes without worrying the restrictions of scenario. Application: § TV shows,live shows,event background display
§ Party,stage lighting,vocal concert,beauty pageant competitions § Hotel,night clubs ceiling and floor decoration
§ Architectures lighting decoration Technical Specification as below

*Model*	*MJ3- 55*	*MJ3- 55H*	*MJ3- 80*	*MJ3- 80H*
Pixel pitch	55mm	55mm	80mm	80mm
Pixel density	330 / sq meter	330 X 2 / sq meter	156 / sq meter	156 X 2 / sq meter
Pixel composition	3 LEDs ( LED: RGB 3in1 SMD)
Brightness	2200 nits	2200 nits	1000 nits	1000 nits
Pixel surface	SINGLE	DUAL	SINGLE	DUAL
Max.Power Consumption	≤ 450 W	≤ 900 W	≤ 210 W	≤ 420 W
Ave.Power Consumption	≤ 225 W	≤ 450 W	≤ 105 W	≤ 210 W
*Model*	*MJ4- 55*	*MJ4- 55H*	*MJ4- 80*	*MJ4- 80H*
Pixel pitch	55mm	55mm	80mm	80mm
Pixel density	330 / sq meter	330 X 2 / sq meter	156 / sq meter	156 X 2 / sq meter
Pixel composition	4 LEDs (LED: RGB 3in1 SMD)
Brightness	3000nits	3000nits	1500nits	1500nits
Pixel surface	SINGLE	DUAL	SINGLE	DUAL
Max.Power Consumption	≤ 600 W	≤ 1200 W	≤ 280 W	≤ 560 W
Ave.Power Consumption	≤ 300 W	≤ 600 W	≤ 140 W	≤ 280 W
*General parameters*
Viewing angles	H120° V120°
Refresh rate	≥1000 Hz
Gray Scale	12 bits
Color space	68 Billion
Control system	PC based, dynamic capture & mapping.
Operating Life	> 50,000 hours
Power supply	AC90~260V, 50~60Hz,Meanwell
Protection	IP66 on pixel strings, IP54 on signal distributor and power box.
Work environment	temperature -20~50°C, humidity 10-90%RH
Weight	6KG / pixel roll, 3.8KG / power box
Flight case	length 1.26m, height 0.85m, width 0.74m

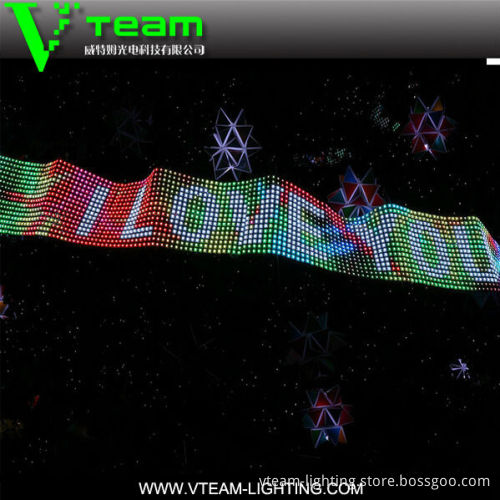

Application Pictures
