LED curtain flexible display

Specifications LED curtain flexible stage display screen

Ultra thin, weight light, 80% transparent

Can be curved,rolled up

CE&RoHS

IP66

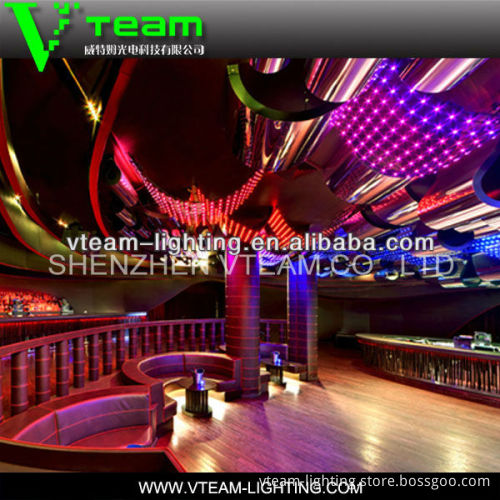

LED curtain flexible stage display screen---iDot series     Application: iDot is a kind of full color soft led screen. Highly artistry and creativity can be assembled into various of applications, such as stage background, club decoration, innovative design etc.   Advantages: Spherical mask with double injection molding. Magnetic buckle (Patented). Square, rhombus, double-sided display available (Patented). Customized pixel pitch, flexible structure. IP66, suitable for outdoor. Specification:

Model	iDOT-35	iDOT-40	iDOT-55	iDOT-80
Pixel Pitch	35mm	40mm	55mm	80mm
Pixel Density	816/sq meter	625dots/sq meter	330/sq meter	156/sq meter
Brightness	2200 nits	1500 nits	900 nits	420 nits
Pixel Surface	SINGLE	SINGLE	SINGLE	SINGLE
Max Power Consumption	≤370W	≤280W	≤150W	≤70W
Ave Power Consumption	≤180W	≤140W	≤75W	≤35W
General Parameters
Pixel Composition	RGB 3 IN 1 SMD3535
Viewing Angles	H140° V140°
Refresh Rate	≥1000Hz
Gray Scale	12 bits
Color Space	68 Billion
Control System	PC based dynamic capture&mapping
Operating Life	More than 50,000 hours
Power Supply	AC90-260V, 50-60Hz, Meanwell
Protection	IP66 on pixel strings, IP54 on signal distributor and power box
Working Environment	Temperature -20-50°C, humidity 10-90%RH
