New curtain design led display

Get Latest Price

Payment Type:: T/T, Western Union

Min. Order:: 2 Roll/Rolls

Min. Order:: 2 Roll/Rolls

Delivery Time:: 15 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)
Supply Ability:	6000 Square Meter/Square Meters per Month
Payment Type:	T/T,Western Union

Product Description

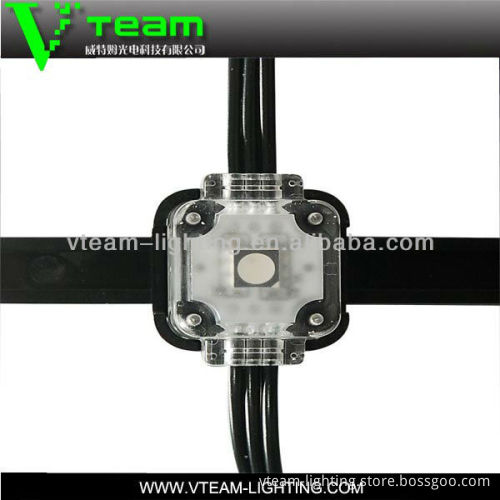

New curtain design led display for stage&clubs ---(Flxi series) Advantages: Frosted white plane mask and black bottom, cool display effect, best competitive price. Rich installation accessories, flexible installation, adapting to different scenarios. A creative way to realize the ultra-thin double display, and the thickness of whole screen is not more than 28 mm. The diamond display without additional parts creates the dreamlike effect for the world. High permeability, go through light, air and smoke easily. Realizing various irregular shapes without considering the restrictions of scenario. It is best choice for the creative design company for its easier design and various applications. FLXi Technological Parameters

*Model*	*FLXi- 55*	*FLXi- 55H*	*FLXi- 80*	*FLXi- 80H*
Pixel pitch	55mm	55mm	80mm	80mm
Pixel density	330 / sq meter	330 X 2 / sq meter	156 / sq meter	156 X 2 / sq meter
Brightness	900 nits	900 nits	420 nits	420 nits
Pixel surface	SINGLE	DUAL	SINGLE	DUAL
Max.Power Consumption	≤ 150 W	≤ 300 W	≤ 70 W	≤ 140 W
Ave.Power Consumption	≤ 75 W	≤ 150 W	≤ 35 W	≤ 70W
*Model*	*FLXi-110*	*FLXi-110H*	*FLXi-160*	*FLXi-160H*
Pixel pitch	Rhombus, side length 77.8mm	Rhombus, side length 77.8mm	Rhombus, side length 113mm	Rhombus, side length 113mm
Pixel density	165 / sq meter	165 X 2 / sq meter	78 / sq meter	78 X 2 / sq meter
Brightness	450 nits	450 nits	220 nits	220 nits
Pixel surface	SINGLE	DUAL	SINGLE	DUAL
Max.Power Consumption	≤ 75 W	≤ 150 W	≤ 35 W	≤ 70 W
Ave.Power Consumption	≤ 38 W	≤ 75 W	≤ 18 W	≤ 35 W
*Model*	*FLXi- S110*	*FLXi- S110H*	*FLXi- S160*	*FLXi- S160H*
Pixel pitch	110mm	110mm	160mm	160mm
Pixel density	82.5 / sq meter	82.5 X 2 / sq meter	39 / sq meter	39 X 2 / sq meter
Brightness	230 nits	230 nits	110 nits	110 nits
Pixel surface	SINGLE	DUAL	SINGLE	DUAL
Max.Power Consumption	≤ 75 W	≤ 150 W	≤ 18 W	≤ 35 W
Ave.Power Consumption	≤ 38 W	≤ 75 W	≤ 9 W	≤ 18 W
*General parameters*
Pixel composition	RGB 3in1 SMD
Viewing angles	H120° V120°
Refresh rate	≥1000 Hz
Gray Scale	12 bits
Color space	68 Billion
Control system	PC based, dynamic capture & mapping.
Operating Life	> 50,000 hours
Power supply	AC90~260V, 50~60Hz,Meanwell
Protection	IP43/IP65 (Optional) on pixel strings, IP54 on signal distributor and power box.
Work environment	temperature -20~50°C, humidity 10-90%RH
Weight	5KG / pixel roll, 3.8KG / power box
Flight case	length 1.26m, height 0.85m, width 0.74m
