New product Led big stage screen

Specifications Led big stage screen

Vivid pictures

Superthin; Lightweight

Relative low price

CE,RoHS

New product Led big stage screen   Led big stage screen is a light, thin and high transparent product which is very suitable for lighting rental and application in large squares. Jointed correctly, easy to install and dismount, Led big stage screen also has simple structures with performance of security and durability. The unit size is 1000*500*54 (L*W*H).Moreover the weight is only 7.5kg. Led big stage screen is applicable in various entertainment areas, such as TV stages and clubs. Colors could be changed and Led big stage screen can also be used to landscape. The images are pretty clear and magic. Led big stage screen is the best choice for creative designing companies.   Notable advantage of Led big stage screen: ---Ultra light,could be dismounted by only one person without tools ---Front maintenance: small module(small square within 4 screws) can be replaced with another one if it stops working. ---Could shape any arc-shape within +/-10. ---high brightness with 2500nits for indoor screen.   Application of Led big stage screen: ---TV shows, live shows, events background display ---Party, stage lighting ---Hotel, disco, bars, night club ceiling and floor decoration ---Architectures exterior lighting decoration     Parameter of Led big stage screen:

Item	Cn10	Cn12
Pixel Pitch	10.4166mm	12.5mm
LED type	RGB 3in1 SMD	RGB 3in1 SMD
Pixel Density	9216dots/m2	6400dots/m2
Resolution	96x48dot	80x40dot
Cabinet size	1000x500x54mm	1000x500x54mm
Weight	7.5kg	7kg
Waterproof rate	IP43	IP43
Brightness	1800CD/m2	1500CD/m2
View Distance	≥10m	≥12m
Viewing Angle (H/V)	120°/120°	120°/120°
Gray Scale	14bit	14bit
Color type	68 Billion	68 Billion
Max.Power Consumption	200W/PCS	200W/PCS
Ave .Power Consumption	70W/PCS	70WPCS
Refresh rate	>960HZ	>1000HZ
Gamma	-5.0~+5.0
Applied environment	INDOOR
Controller	Synchronous display with control PC by DVI
Support Input	Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI
Power input	AC90~260 50/60HZ, FSP GROUP
Environment	temperature -10°C~+50°C,humidity 10~90% RH
Operating Life	50,000hours

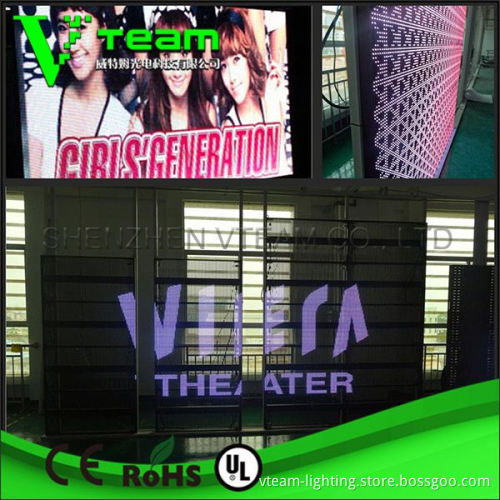

   Application Pictures of Led big stage screen:   The system connection of Led big stage screen:     Accessories of Led big stage screen:     More information about our company and products of Led big stage screen:      ...
