SMD IP65 P15 Outdoor Advertising LED Display Screen High Resolution

Specifications SMD IP65 P15 Outdoor Advertising LED Display Screen High Resolution

easy for installation

high brightness

1.Specifications 1.transparent ,
2.IP65
3.panel size:600mm(W)*900MM(H)
4.lightweight
5.easy for installation                          SMD IP65 P15 Outdoor Advertising LED Display Screen High Resolution   iGrid is a kind of LED colorful screen with the performance of light, thin and transparent. It's jointed correctly; easy to install and dismount; simple structure, secure and durable. The electron device insert technologies especially design for the lighting rental merchant, which could be waterproof and crash proof. Then, the customers could be free from worry. The SMD is (1R+1G+1B) and static constant current drive, so the iGrid is with high brightness, high fresh rate and high gray rate, which would be the first choice for the large size display products for outdoor use. Light, suitable for flow shows, convenient in transporting and jointing. Nice appearance and secure. IP65, it could be applied temporarily outdoor, make it possible to operate in the sudden rainy days. Could achieve any arc-shaped within +/-20. Jointed correctly, could be dismounted by one person without tool. High transparency. Light, air and frost could easily cross through it. Humanized operating interface with breakdown indicator lights. UL certificate   Application Scene: ideal for dazzling different events, such as stage, concert, fashion show, wedding, conference, building, hotel, club & bars, festival, etc     2. Technical Specifications

Item	IGrid15	IGrid18.75	Igrid25	Igird37.5
Pixel Pitch	15 mm	18.75 mm	25 mm	37.5 mm
Pixel Density	4444pixels/m²	2844pixels/m²	1600pixels/m²	711pixels/m²
Brightness	8000 nit	6500 nit	3500 nit	1500 nit
Weight / Module	8KG	7.5KG	7.5KG	7KG
View Distance	15m	19m	25m	38m
Max power consumption	900w/m²	700w/m²	400w/m²	200w/m²
Ave power consumption	480w/m²	400w/m²	220w/m²	110w/m²
Refresh rate	1800 Hz	2400 Hz	3600 Hz	4800 Hz
Cabinet size	600x600x85mm (600x900x85mm to be customized)
Led type	SMD 3535 RGB 3in1
Gray Scale	16bit
Color type	68.7 Billion
IP Rating	IP 65
Viewing Angle	140°/140°
Brightness Control	0-100% 16 level

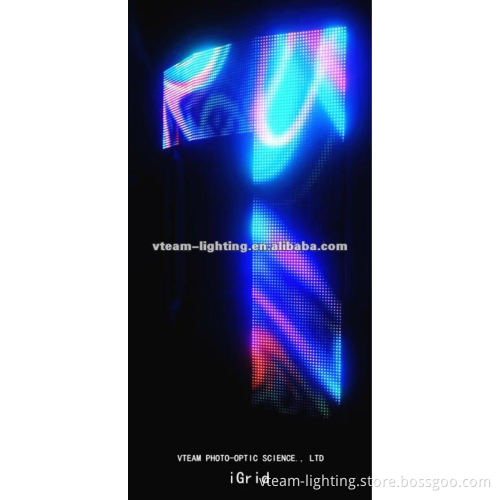

    3. Projects Pictures          VTEAM PHOTO-OPTIC TECHNOLOGY CO., LTD locates Shenzhen, China. We , with a brilliant researching and developing team and production facilities,  dedicates ourselves to the creation and development of the LED products, in the a goal to let more people enjoy integration application, high technology at the best price. We could produce and develop custom-made LED products, which is friendly and modern, then could meet you different needs perfectly. Vteam develops and supplies ultra thin, ultra light and high transparent LED full color systems including transparent pixel light, high transparent color screen and ultra thin high definition display modules and accessories, which are ideal for various products’ presentation, beauty pageant competitions, clubs, television station, conferences and top grade landscaping application, etc. Vteam quickly become the focus for reliable quality, advanced technology, stable workmanship, automatic production facility and reasonable price. We provide the standard and convenient products for you. They are being widely used for displaying video, catalogues, text or advertisement in bank, bond, school, telegraphy, court, station, airport, talent market, city lighting, entertainment areas or outdoor lighting, etc.    Vteam gain a high recognition among the customers for our new item’s design, the complete solution forms the hardware to the software, the guarantee of high quality and the best after-sale service. Our products mainly export to Europe, America, Asia, Africa, Australia, etc. We sincerely welcome engineering consults, trade merchant, entertainment enterprise from all over the world to visit our factory in Shenzhen; we would provide you the superior products, reasonable price, punctual date of delivery and the best service to achieve the win-win cooperation.
