led video Amazing large flexible led screens double-side led mesh screen

Specifications China Video Colorful Led Display for TV Show

transparent material

Flexible installation

CE ROHS

2 years warranty

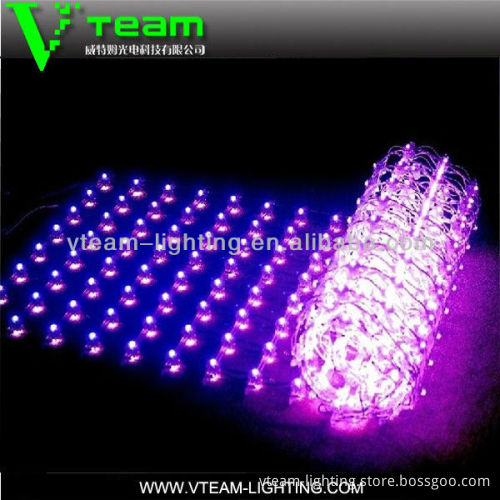

  led video Amazing large flexible led screens double-side led mesh screen-- (gDOT Series)       gDOT Overview: gDOT is a high transparent, soft full color LED display system. Its features are flexible installation, lightweight, highly transparent, which are adapted to various kinds of installation, such as bend, fold, winding, swing, etc.. It is high artistry and creativity that can be free to assemble into various shapes. It is the best choice for the innovative design company.     gDOT product Features:  1. Completely transparent material, Cool display effect.  2. Rich installation accessories, flexible installation, adapting to different scenarios.  3. A creative way to realize the ultra-thin double display and the thickness of whole screen is not more than 33 mm.  4. The rhombus display without additional parts creates the dreamlike effect for the world.  5. High permeability, go through light, air and smoke easily.  6. Realizing various irregular shapes without considering the restrictions of scenario.  7. It is best choice for the creative design company for its easier design and various applications.     Application:   § TV shows,live shows,event background display
§ Party,stage lighting,vocal concert,beauty pageant competitions § Hotel,night clubs ceiling and floor decoration
§ Architectures lighting decoration      Specification as below,

Model	gDOT-55	gDOT-55H	gDOT-80	gDOT-80H
Pixel Pitch	55mm	55mm	80mm	80mm
Pixel Density	330/sq meter	330x2/sq meter	156/sq meter	156x2/sq meter
Brightness	900 nits	900 nits	420 nits	420 nits
Pixel Surface	SINGLE	DUAL	SINGLE	DUAL
Max Power Consumption	≤150W	≤300W	≤70W	≤140W
Ave Power Consumption	≤75W	≤150W	≤35W	≤70W
General Parameters
Pixel Composition	RGB 3 IN 1 SMD
Viewing Angles	H120° V120°
Refresh Rate	≥1000Hz
Gray Scale	12 bits
Color Space	68 Billion
Control System	PC based dynamic capture&mapping
Operating Life	More than 50,000 hours
Power Supply	AC90-260V, 50-60Hz, Meanwell
Protection	IP43/IP65 on pixel strings, IP54 on signal distributor and power box
Working Environment	Temperature -20-50°C, humidity 10-90%RH
