billboard /led Panel Indoor/advertising Display screen/new 2013/alibaba express/PH10 Indoor LED curtain for stage backdrops

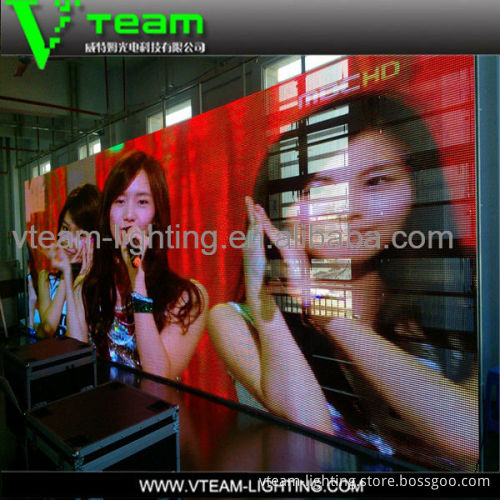

  billboard /led Panel Indoor/advertising Display screen/new 2013/alibaba express/PH10 Indoor LED curtain for stage backdrops--(Cn Series)                                                            Cn Overview:   Cn10/12 is a light, thin and transparent products that very suitable for lighting rental and large square application. Jointed correctly, easy to install and dismount, simple constitution with the performance of secure and durable. The size unit size is 1000*500*54 ( L*W*H), while the weight is only 7.5kg, with high transparency. Cn10/12 with the performance of light, thin and transparent are very suitable for application on   entertainment areas, such as TV stage and clubs. It could be change colors and produce images. The display image are pretty clear, true and magic. Cn10/12 is the best choice for creative designing company to produce large square image.     Cn product Features: 1. Light, suitable for flow shows, convenient in transporting and jointing. 2. Nice appearance and secure. 3.J ointed correctly, could be dismounted by one person without tool 4. High transparency. Light, air and frost could easily cross through it. 5. Humanized operating interface with breakdown indicator lights. 6. High debugging brightness with 500-2000nit and no damage to gray scale, matched well with the debugging technology with nice image.     Applications   Stage design; Show & exhibitions;   Entertainment venue; Company events; Club; Others;     Specification as below,

Item	Cn10	Cn12
Pixel Pitch	10.4166mm	12.5mm
LED type	RGB 3in1 SMD	RGB 3in1 SMD
Pixel Density	9216dots/m2	6400dots/m2
Resolution	96x48dot	80x40dot
Cabinet size	1000x500x54mm	1000x500x54mm
Weight	7.5kg	7kg
Waterproof rate	IP43	IP43
Brightness	1800nits/1200nits	1500 nits/1000nits
View Distance	≥10m	≥12m
Viewing Angle (H/V)	120°/120°	120°/120°
Gray Scale	14bit	14bit
Color type	68 Billion	68 Billion
Max.Power Consumption	200W/PCS	200W/PCS
Ave .Power Consumption	70W/PCS	70WPCS
Refresh rate	>960HZ	>1000HZ
Gamma	-5.0~+5.0
Applied environment	INDOOR
Controller	Synchronous display with control PC by DVI
Support Input	Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI
Power input	AC90~260 50/60HZ, FSP GROUP
Environment	temperature -10°C~+50°C,humidity 10~90% RH
Operating Life	50,000hours
