P5/P6/P7 rental indoor full-color led display high brightness

  P5/P6/P7 rental indoor full-color led display high brightness ---(An Series)                                                                                                                                            Overview:   An6/7/8 is a light and thin products that very suitable for lighting rental and large square application. Jointed correctly, easy to install and dismount, simple constitution with the performance of secure and durable. The size unit size is 1000mm*500mm*68mm ( L*W*H), while the weight is only 13kg. An6/7/8 with the performance of light and thin are very suitable for application on   entertainment areas, such as TV stage and clubs. It could be change colors and produce images. The display image are pretty clear, true and magic. An6 is the best choice for creative designing company to produce large square image.           1. Light, suitable for flow shows, convenient in transporting and jointing.         2. Nice appearance and secure.         3. Jointed correctly, could be dismounted by one person without tool.         4. Humanized operating interface with breakdown indicator lights.         5. High debugging brightness and no damage to gray scale, matched well with the debugging technology with nice image.   An application as below,   Stage design; Show & exhibitions;  Entertainment venue;Company events;Club;Others;

Item	An5	An6	An7	An8
Pixel Pitch	5.2mm	6.944mm	7.8125mm	8.92mm
LED type	RGB 3in1 SMD3230	RGB 3in1 SMD3528		RGB 3in1 SMD3535
Pixel Density(dot/s.q.m)	36864	20736	16384	12544
Resolution(WxH)	96x192 dot	72x144 dot	64x128 dot	56x112 dot
Cabinet size	500x1000x62mm			500x1000x68mm
Weight	10kg	10kg	10kg	13kg
Waterproof rate	IP43			IP65/IP43
Brightness	1300nits	1300nits	1300nits	4500nits
View Distance	6m	7m	8m	10m
Viewing Angle (H/V)	140°/120°
Gray Scale	14bit
Color type	68 Billion
Max.Power Consumption	250W/PCS	120W/PCS	120W/PCS	250W/PCS
Ave .Power Consumption	130W/PCS	60W/PCS	60W/PCS	130W/PCS
Refresh rate	1960Hz
Gamma	-5.0~+5.0
Applied environment	INDOOR			OUTDOOR
Controller	Synchronous display with control PC by DVI
Support Input	Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI
Power input	AC 220V±10%
Environment	temperature -10°C~+50°C,humidity 10~90% RH
Operating Life	50,000hours

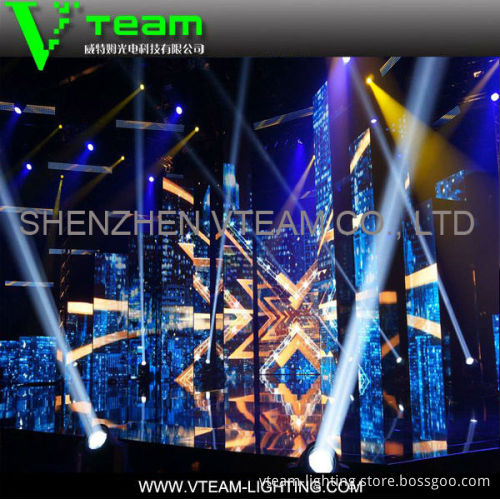

      An Series Photos
