P20 Outdoor LED Digital Signage

Specifications LED Digital Signage

1. Vivid pictures

2. Big viewing angle distance

3. CE.ROHS.FCC

4. IP65 class protection

1.The Specifications of P20 LED Digital Signage

Product Model	P20
Pixel Pitch	20 mm
Pixel Density	2500 Pixels/sq.m
Pixels Composition	2R+1G+1B
Module Resolution(H×V)	16 Pixels × 8 Pixels
Cabinet Resolution(H×V)	64 Pixels × 48 Pixels
Module Dimension(H×V)	320 mm × 160 mm
Cabinet Dimension(H×V)	1280 mm × 960 mm
Brightness	>6000 cd/m²
Optimal Viewing Distance	>20 m
Max. Power Consumption	700 W/m²
Scan Mode	Static, Constant Current
Viewing Angle	H <110, V <60
Refresh Frequency	300HZ~9600HZ(Depending on control system)
Inputting Voltage	220V or 110V
LED life span	50,000 - 100,000 H
Operating Temperature	-20°C~+60°C
Ingression Proof Grade	Front: IP65; Back: IP54;

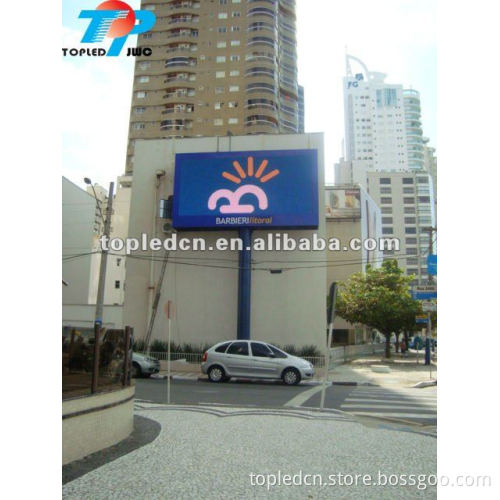

  2. Advantage for outdoor LED Digital Signage   1).High Contrast And Frequency: 4000:1 and 5000HZ, which is a very high level to ensure a vivid image of our LED screen system 2).First-class LED chip: Supplied by Silan & other high strictly selected LED chip to ensure the long life time and high brightness 3).Clear Vivid Image Quality: even in direct , full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment 4).Long-term Brightness:6500-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display   3. Project showing   4. Pacakge and Certificates           5.Workshop
