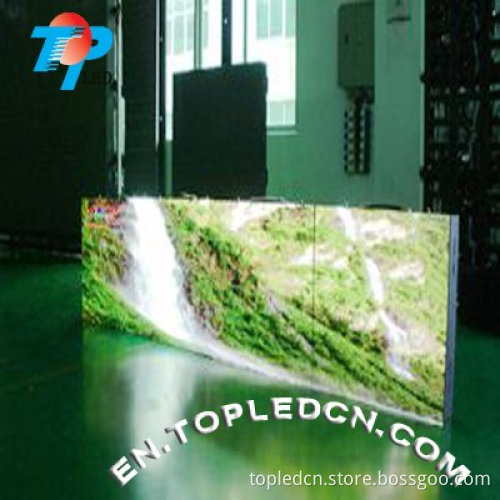

TOPLED P6 Indoor Fullcolor Led Display

classification

P6

Real or virtual

Full color real

Pixel pitch

6mm

Size of module

192*96mm

Pixel density

27778dots/m²

Pixel composition

1R1G1B

LED encapsulation

SMD3528

Resolution of module

32*16

Power consumption of

module

25W

Best viewing distance

6m

Best viewing angle(H)

120°

Max power consumption

1400W/m²

Size of standard cabinet

768*576mm

Resolution of standard cabinet

128*96

Weight of standard cabinet

30kg( waterproof)

Driving IC( 5026 optional)

MBI5024GF

Driving method

1/8 constant

Frame frequency

≥60Hz/s

Refresh rate

≥360Hz/s

White balance brightness

≥1500cd/m²

Working environment

temperature

-20°C-50°C lower temperature is

optional

Working voltage

220±10% or 110 ± 10%

Grey scale

Display colors ≥16.7M(synchronized)

Brightness adjustment

256 levels of each color can be

Adjusted manually, and 8 levels of each color can be adjusted

automatically

Signal input

RF, S-Video, etc.

Control system

PCTV nonlinear editing card +

DVI display card+ main controller card + optic fiber transmission  optional.

MTBF

More than 5000 hours

Lifespan

More than 100000 hours

Malfunction dot rate

Less than 0.0001

Transmission distance

LAN cable ≤ 100m,  optic fiber transmission: MMF ≤500m, SMF ≤20km

Refresh rate can be higher by using more receivers; other parameter can be changed according to different applications.
