Product Description

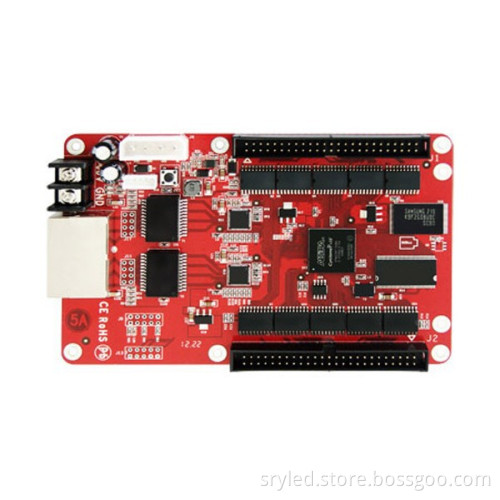

RD A8F Info

Features RD A8F-dual-mode system-----Perfect combination of synchronization and asynchronization • Dual-mode function.Every card has large capacity memorizer and one key video function. The system has online synchronous mode and off-line asynchronous mode. If network is interrupted or the computer develops a fault in the synchronous mode, switch to record-broadcast real-timely. Ensure that play without interruption. Power on/off and lock the screen at regular time, using real time clock. • More reasonable gigabit transmission technology and ultra-low power consumption chip. Switching randomly the sequence of two Ethernet interfaces. Input/output intelligent identification. Ethernet cable loopback function: detect the position of broken cable in the cascade circuit and give a warning, using loopback function. Even if there is a broken cable between cards, the display can still continue. • Point by point correction: available for single/double/full color display. Single card in the full color display supports 256*256 correction area, far bigger than 64*48 of some manufacturers. • Each card has temperature sensor. Accurately monitor the temperature of every box and display the temperature value according to the rules. When its temperature exceeds the preset threshold value, Brightness will be limited to protect the screen. • Support the expansion card: Expansion card can manage temperature, brightness, humidity, smoke, the voice and the relay. Automatically adjust fan and air conditioning according to the temperature • Display control more delicate, effect more outstanding. • Add dozens of self-checking mode. • Compatible with T9 seamlessly. All functions are the same, except for some new functions. The control system is available for full, single/double color LED display. Parameters

Network interface	Exchange automatically, realize loopback automatically
Storage capacity	Standard 2Gbit
Point by point collection	Support multiple data formats. Support error data collected automatically by our CaliShow software. Using 25-bit color high-precision correction. Collection area controlled by single card: any size within 256256 pixels(full color); 512256 pixels (single/dual color)
Temperature detection	The accuracy may reach to 0.1℃.Temperature range is -40℃~125℃.
Expansion card	Every dual-mode card can be equipped with optional expansion card. Support temperature, humidity, smoke, noise, voice transmission and power detection. The relay controls air conditioning, fan and electromagnetic door of the box. Customers can also customize the function according to the need.
Sending	A national standard reticle can transmit all signal, not needing sending card.
Computer configuration	Gigabit network interface. 100mega network interface(optional)
Total control area	Read signals directly from internal storage or display memory. It has nothing to do with the display to control the size of the image, easy to extend your screen. A reticle and a computer can control a ultra-long, ultra-high screen. The pixel width or the pixel height reachs generally 8192. Easy to control hundreds of square meters large screen.
Operation steps	Operating LEDSHOWT9 can finish all the operation after connecting the reticle.
Refresh rate	60-20000HZ(automatically calculate )
Phase-locked loop frequency	Make adjustment automatically, not needing to get data through DVI and be restricted by display card.
Single card of control area	Each receiving card can control 640 * 256 in maximum when gray 4096, refresh rate 200 HZ. The various specifications module test shows that the control area is larger than 20% of the conventional system.
Gray-scale adjustment	Arbitrarily adjust within 65536 gray-scale .Default level is 4096.
Multi-screen synchronization	Working status between screens can be arbitrarily combined and switched
Color display	Easy to display 1,073,741,824 kinds of color or more color without being processing by the display card.
Smart setting	Complete intelligent. Smart setting more concise, all in one step. The position of receiving card can be arbitrarily listed.
Program setting	Divided into four layers: LED screen, program page, show window and program. Page is clear and simple. Right-click operation andquick access toolbar .
Performance	The structure is simple and the stability is improved greatly.
Cost performance	High
Upgrade	The whole system is upgraded and its performance is extended with software being upgraded. Ensure that the LED display remains the most advanced technology. Ensure the best display.
