Novastar MCTRL300 Synchronous LED Display Controller Sending Box

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	D/P,D/A,T/T

Product Description

MCTRL300 is a standard model of Nova controllers. It has the same characteristics as sending card MSD300.

Features:

1) 1 DVI video input;

2) 1 audio input;

3) 2 Ethernet port outputs;

4) USB interface which can be cascaded for uniform control;

5) Single sending card supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668;

6) 1 light sensor interface;

7) Independent power supply;

8) Cascading ports (UART OUT/IN) have adopted aviation plug which is stable and reliable.

Specification:

Specification
Overall power consumption	16W
Temperature of working environment	-20℃~60℃
Humidity of working environment	0%~95%
Net Weight	1kg
USB cable	1.5m
DVI cable	1.5m

Product Show:

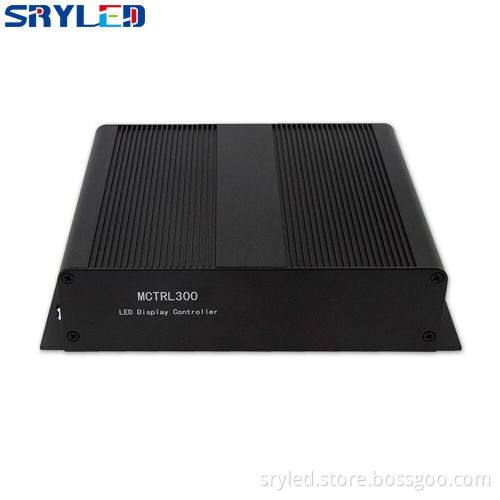

Synchronous Indoor Outdoor Led Display Controller Novastar MCTRL300 Sending Box

Led Indicator
Run	It blinks slowly when no video source is available. (The light keeps on for 2 seconds and then off for 2 seconds.). It blinks normally when the video source is available. (It blinks about twice per second.). It blinks quickly when start-up screen is displayed. When the redundancy works, the indicator blinks at a frequency of breathing.
Status	It is steady on when the equipment runs normally and blinks during authorization.
Inputs
Audio		Audio input
DVI in		DVI input
Outputs
Out1-2		2 LED outputs
Control
To PC		Connected to PC , USB control interface
Uart in / out		Cascaded Input, Output
Accessory
Light Sensor		Connected to sensor
Power
AC-100-240V-50/60HZ		AC power interface
