Outdoor High-Brightness 8-Scan 320x160mm P5 LED Module: Brighten Your Space with Advanced Lighting Technology

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	D/P,D/A,T/T

Product Description

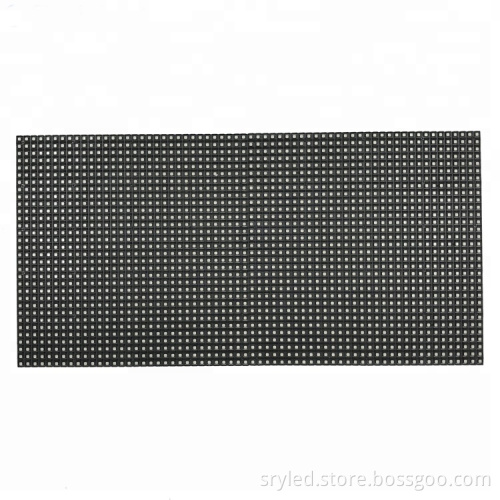

Outdoor High Brightness 8 Scan 320x160mm P5 Led Module

Notice:

1, The price including P5 led module, one data cable and one power cable(support 2pcs led modules).

2, The led module can connect with Linsn, Novastar, Xixun etc control cards.

3, Different batches led module has different brightness, color even circuit board, please buy all led modules one time.

We also have complete led display screen for your selection.

More product

Pixel Pitch	5mm
Pixel Density	40000dots/sqm
Color Configuration	1R1G1B
LED Package	SMD2727
Module Size	320mm x 160mm
Module Resolution	64dots x 32dots
Viewing Distance	5m-50m
Viewing Angle	H: 140°; V:140°
Refresh Rate	1920HZ, adjustable by software
Grey Scale	16.7M colors(Synchronized)
Color Temperature	R.G.B brightness 256 level adjustable
Power Input	AC110V/ 220V ±10%, 50HZ
Max Power Consumption	850W/sqm
Ave. Power Consumption	300W/sqm
Working Temperature	-20℃~+50℃
Blind Spot Rate	<1/10000
Life Span	>100,000 Hours
Waterproof Level	IP65
Operating Humidity	10%~90% RH
Operating System	Win 98, Win2000, XP, Win7, Win8, Win10
Video Signal Mode	RF, S-Video, RGB, RGBHV, YUV, YC etc
Certificate	CE, RoHS
